100W Efficient Solar Highway Luminaires
Description

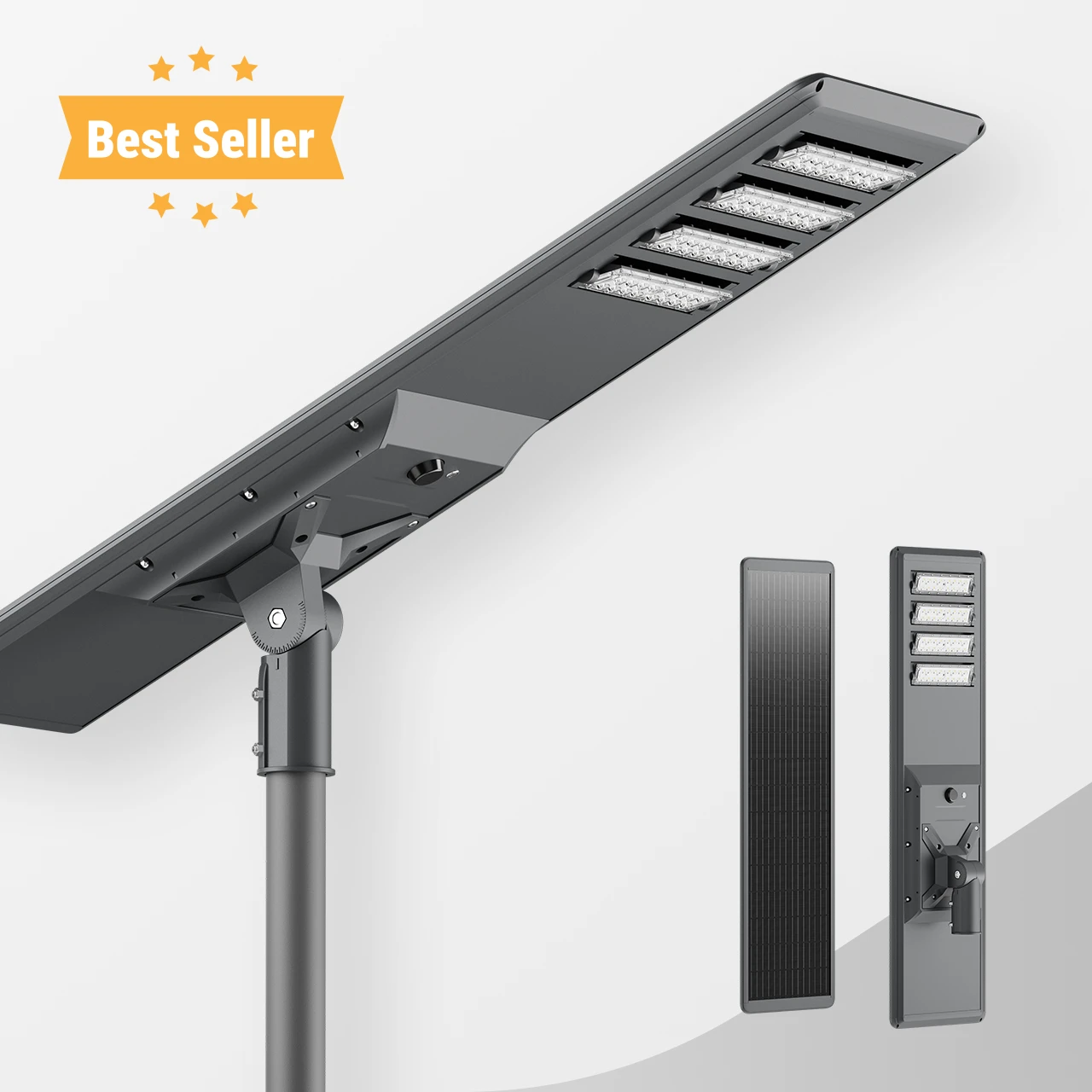

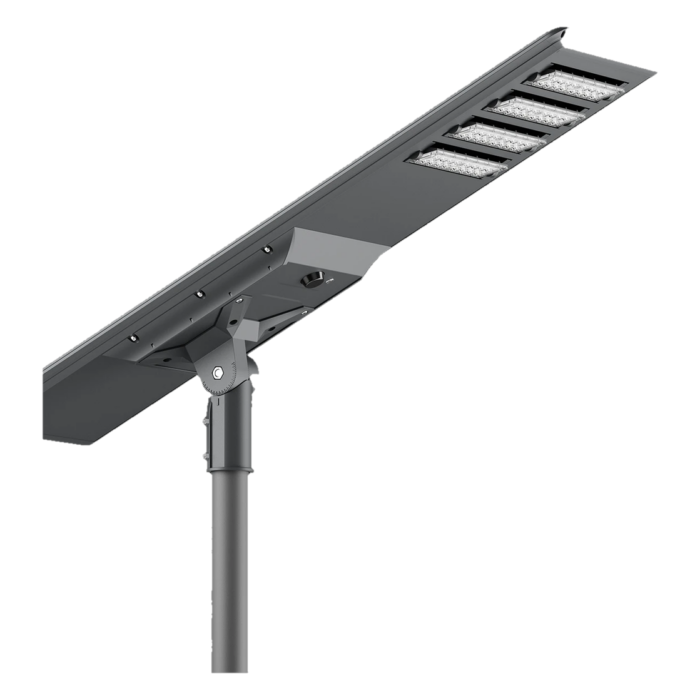

The innovative design of ZAIN integrated solar led light maximizes solar energy capture and provides targeted illumination for specific areas. With independently adjustable solar panels and LED modules, the optimal direction for street lighting aligns perfectly with the best orientation for solar panels.
The innovative design of ZAIN integrated solar led light maximizes solar energy capture and provides targeted illumination for specific areas. With independently adjustable solar panels and LED modules, the optimal direction for street lighting aligns perfectly with the best orientation for solar panels.
The ZAIN series is a high-quality, engineering-grade solar street light designed for a wide range of applications, from 5-meter to 12-meter pole heights. Crafted with a robust die-cast aluminum housing and premium-grade components, this product is built to last. The lithium battery uses high-temperature-resistant 32700 cells, with a lifespan of over 2000 cycles. Each night, the battery's depth of discharge is capped at 60%, ensuring long-term durability and performance.
Technical specifications
| Item number | AIO-80WZ / AIO-100WZ / AIO-120WZ / AIO-140WZ |
|---|---|
| LED power | 80W / 100W / 120W / 140W |
| Luminous | 13,600lm / 17,000lm / 20,400lm / 23,800lm |
| CCT range | 2200K~6500K |
| LED module | SMD5050 48pcs / SMD5050 64pcs / SMD5050 80pcs |
| LiFePO4 battery | 12.8V 614WH / 12.8V 768WH / 25.6V 921WH / 25.6V 1075WH |
| Solar panel | 18V 103W / 18V 125W / 36V 135W / 36V 158W |
| Product size | 1300*420*350mm / 1590*420*350mm / 1360*530*380mm / 1480*530*380mm |
| Charge controller | MPPT |
| Pole size | 76mm |
| Installation height | 6 ~ 10m / 6 ~ 12m / 8 ~ 12m / 8 ~ 14m |
| Warranty | 5 years / AIO-80WZ / AIO-100WZ |
Price on request — please use the “Request a quote” button.
