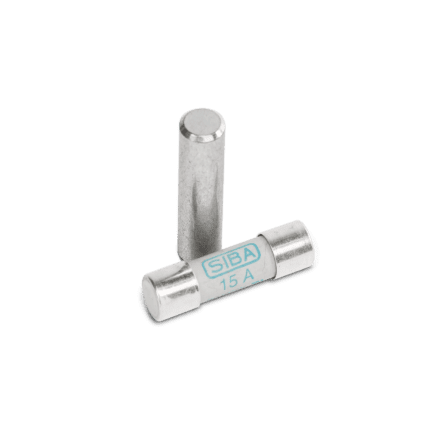

Fronius – 6x 15A Fuses on DC+
The integrated fuse holders enable fuse based overcurrent protection to be implemented directly within the inverter. When ordering your inverters, you can choose whether the positive pole is populated with six 15 A / 1,000 V fuses (supplied by Littelfuse/SIBA/Bussmann) or with bolts. The fuse holders on the negative pole are normally equipped with bolts. The types of fuse used have been specially developed to protect photovoltaic modules and operate to up to 20 kA. Furthermore, the plug-in modules allow individual fuses to be quickly replaced in the event of a fault.

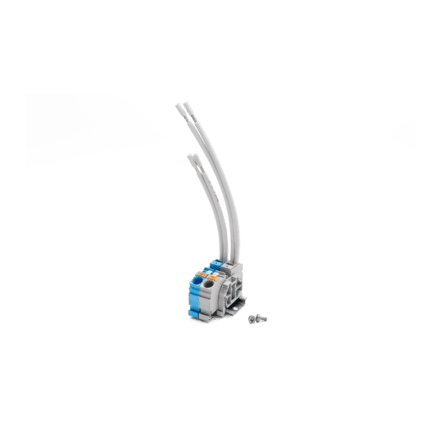

Fronius – DC Connector Kit GEN24
Fronius – DC SPD Type 1+2 GEN24
Fronius – Pair of MC4 Solar connectors
The MC4 cable option enables inverters to be cabled-up quickly and easily, which in turn allows a rapid PV system connection process. The option can be ordered on an individual basis per string (2 to 6 strings) and has been specially designed for use with Symo 10.0 – 20.0 kW and Eco inverters. The inverters are delivered with the installed MC4 cable option*). *) The option must be ordered at the same time as the inverter. A retrofit version is not available. Original MC4 Multi-Contact PV coupling plugs and sockets must also be used for connecting the PV generator.
Fronius Ambient temperature sensor

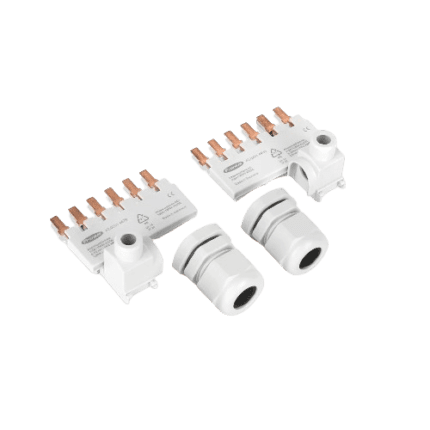

Fronius DC Connector KIT 25

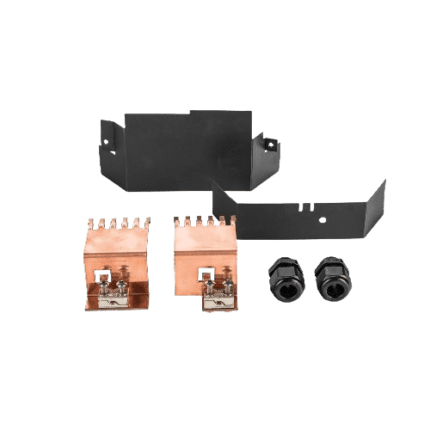

Fronius DC Connector KIT 35
Fronius Irradiation sensor
Fronius Module temperature sensor

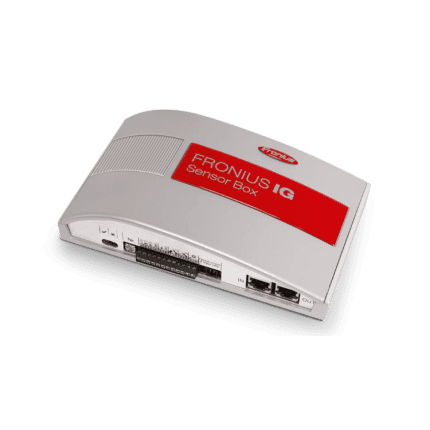

Fronius Sensor Box
With the Fronius Sensor Card / Box, up to six sensors for measuring irradiation, ambient temperature, module temperature, wind speed, etc. can be integrated into the Fronius system monitoring package. Even when measuring irradiation levels and module temperature, you can quickly identify anomalies in the system output to keep performance at a consistently high level. You can choose between a box and a card.

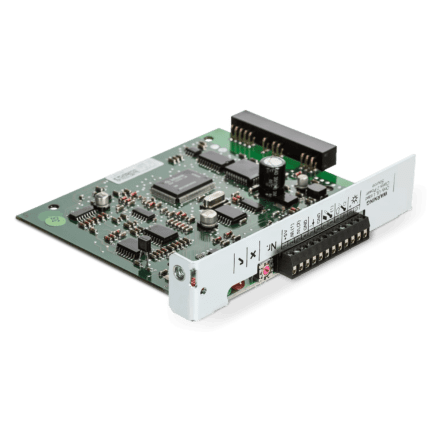

Fronius Sensor Card
With the Fronius Sensor Card / Box, up to six sensors for measuring irradiation, ambient temperature, module temperature, wind speed, etc. can be integrated into the Fronius system monitoring package. Even when measuring irradiation levels and module temperature, you can quickly identify anomalies in the system output to keep performance at a consistently high level. You can choose between a box and a card.
