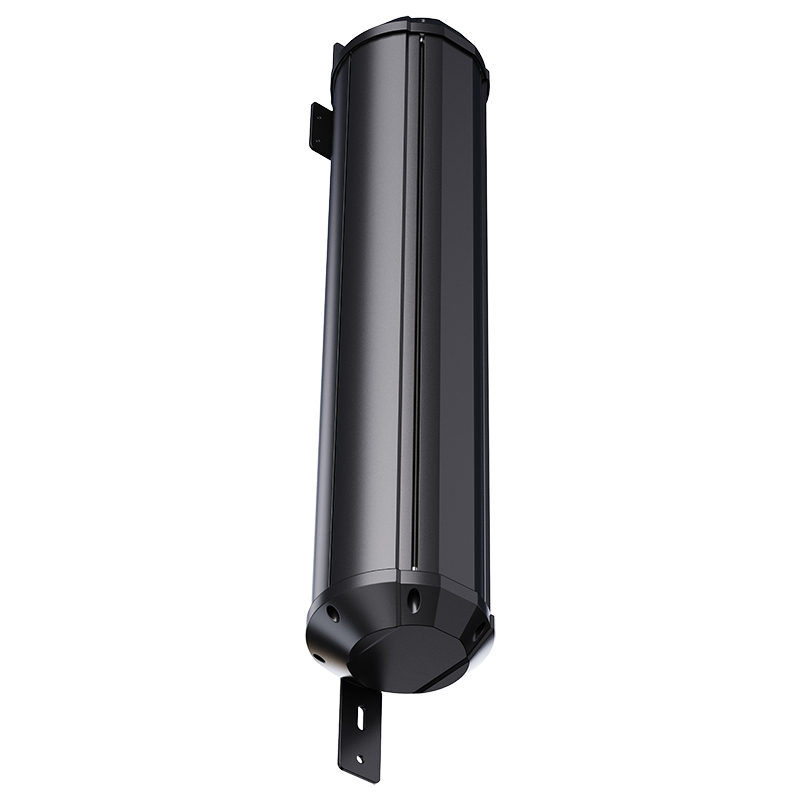

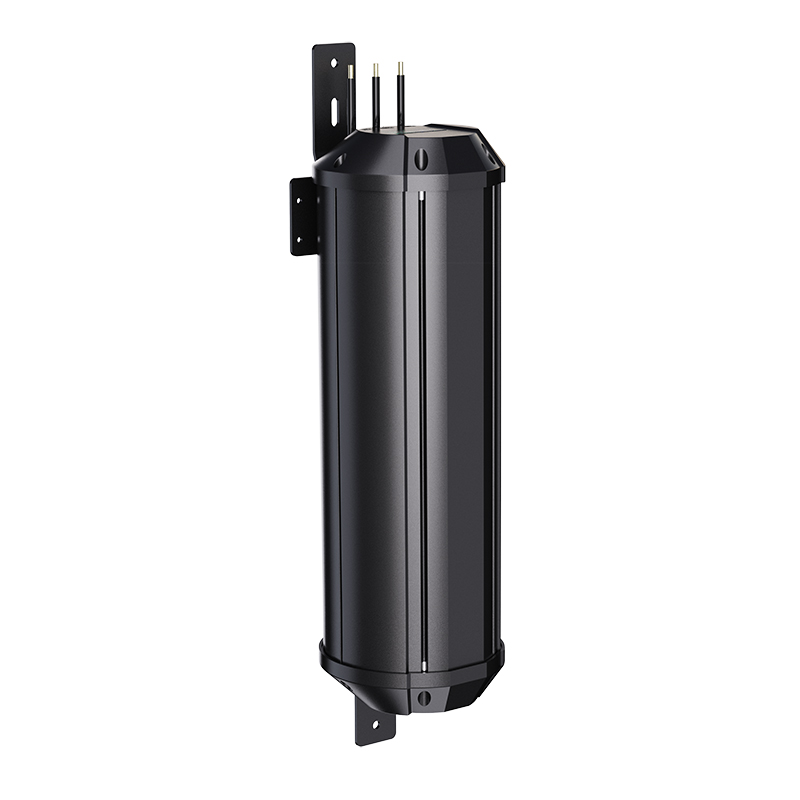

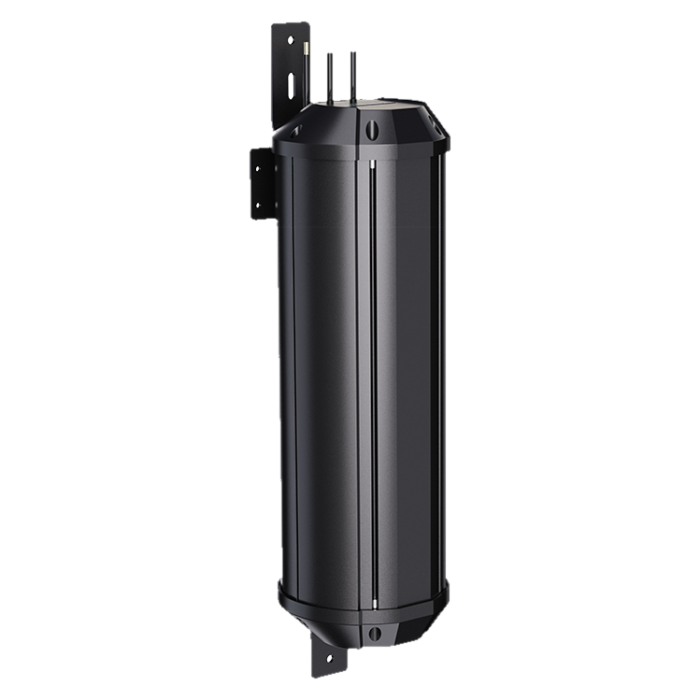

Solar LiFePO4 Battery Integrated in Pole – Series K

Solar LiFePO4 Battery Integrated in Pole – Series K

Description

The Series K battery is an energy storage solution designed specifically for mounting inside solar lighting poles. The integrated design protects the battery from bad weather and extreme temperature swings, as well as from theft and vandalism, ensuring a long service life and high reliability of the whole system.

The rugged aluminium alloy housing with IP67 protection allows safe operation in the harshest environmental conditions. Placing the battery inside the pole eliminates the need for external boxes, keeping the installation area clean and the whole assembly modern and uniform. The interior of the pole also provides excellent heat dissipation, keeping the battery at an optimal working temperature.

Available in several capacity options (from 60 Ah to 90 Ah), the model easily adapts to the energy needs of each project, whether solar street lighting, solar-powered surveillance systems or illuminated advertising panels.

Technical specifications

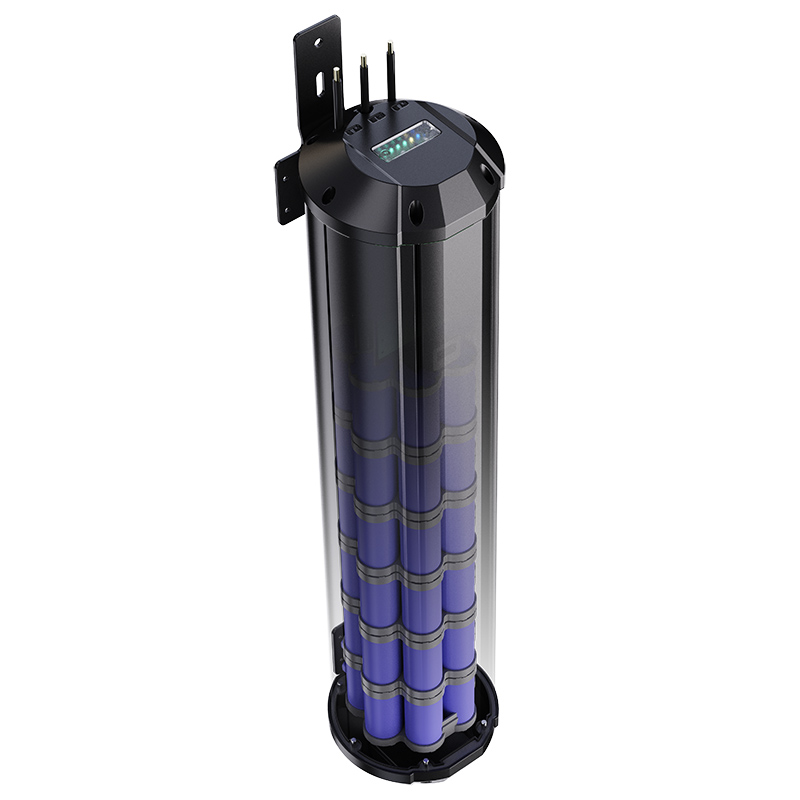

• Cell chemistry: LiFePO4 (32700 / 32140)
• Nominal voltage: 12.8 V (model K2490: 25.6 V)
• Capacity: 60 Ah / 90 Ah (depending on model)
• Models: K1260, K1290, K2460, K2490
• Cycle life: over 4000 cycles
• Depth of discharge (DOD): 60%
• Housing: aluminium alloy
• Protection rating: IP67 (waterproof)
• Operating temperature: -10°C to 45°C
• Dimensions (L x diameter): from 340 x 150 mm to 1200 x 150 mm
• Net weight: 5.5 – 15.5 kg (depending on model)
• Warranty: 3 years

About the manufacturer

The product is made by a specialist with long experience in energy storage solutions for outdoor solar lighting. The LiFePO4 cells used are of superior quality, with high uniformity of internal resistance and of charge and discharge behaviour, guaranteeing consistent performance over the entire service life.

Purpose and applications

The Series K battery is ideal for integration into solar street lighting poles, autonomous video surveillance systems and solar-powered advertising panels. The cylindrical design allows simple mounting inside the pole, reducing installation and maintenance costs while keeping the urban infrastructure clean and attractive.
