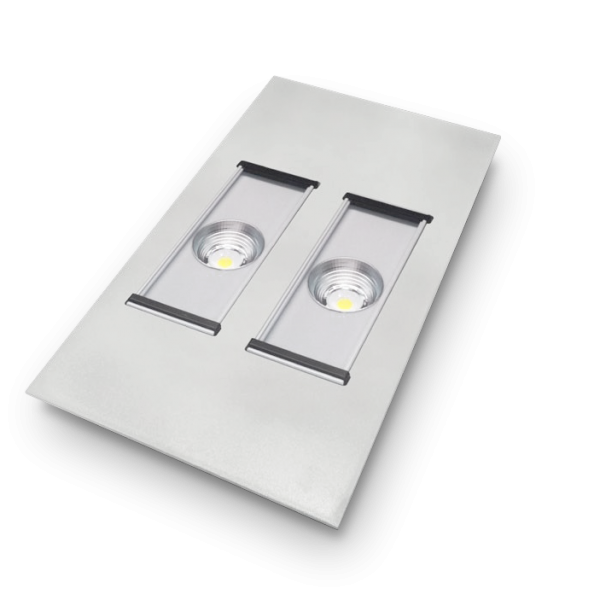

Astro II LED Floodlight for Petrol Stations 2 COB LEDs 100W

Astro II LED Floodlight for Petrol Stations 2 COB LEDs 100W

The Astro II LED floodlight at 100W carries 2 Bridgelux COB LEDs and sits in the canopy of a busy fuel station. Network operators and contractors choose it when they need more flux from the same 520 x 355 mm mounting plate. It answers the demand for even, steady light around the pumps in an IP66 body.

Benefits

• Twice the power, same footprint: 100W from two COB LEDs on the same 520 x 355 mm plate as the 50W version.
• Even illumination: the Bridgelux LEDs use a wide distribution chosen for the pump area.
• No early yellowing: the polycarbonate diffuser is UV protected.
• Sealed and tough: IP66 against water and dust, IK10 against impact.
• Configurable light colour: neutral white 4000 K, recommended, or cool white 5000 K.
• Integrated driver: the supply sits inside the housing and accepts 90-230V AC, 50-60Hz.

Technical specifications

• Body material: electrostatically painted aluminium
• Diffuser: clear polycarbonate, UV protected
• Body colour: other colours available on request
• Light source: 2 Bridgelux COB LEDs, wide distribution
• Total power: 100W
• LED colour (configurable): neutral white 4000 K or cool white 5000 K
• Beam (configurable): wide or medium
• Colour rendering index: 80 for neutral white, 70 for cool white
• Supply: standard 230V AC; range 90-230V AC, 50-60Hz
• Driver: included, inside the housing
• Electrical insulation class: I
• Ingress protection: IP66
• Impact resistance: IK10
• Operating temperature: -20 degrees C to +40 degrees C
• Standard dimensions: 520 x 355 mm
• Weight: 5.7 kg
• Markings: CE, F-Mark; outdoor use

Applications and installation

The unit is made for fuel station lighting. Fix it to a metal plate set into the canopy soffit, so the luminaire finishes flush. The F-Mark allows mounting directly on normally flammable surfaces. IP66 keeps blown dust and wash-down water out of the optical compartment, which matters on open forecourts, and IK10 covers accidental knocks during service. Allow for the 5.7 kg body when you size the plate fixings. The floodlight is designed and manufactured in Europe.

Frequently asked questions

When do I choose 100W instead of 50W? When the canopy is high, or when you want more light over a twin pump without adding more luminaires.

Wide or medium beam? Wide spreads light over a large area and is the usual choice at the pumps. Medium concentrates the flux when the unit is mounted higher.

What operating temperature does it accept? The rated range is -20 degrees C to +40 degrees C.
