Astro II Mono Petrol Station LED Floodlight 50W

Astro II Mono Petrol Station LED Floodlight 50W

The Astro II Mono petrol station LED floodlight is built for the canopy above the pumps. It serves station operators and electrical contractors who need even light over the fuelling islands, a small connected load and long intervals between visits. Recessing the unit into the canopy soffit protects it and keeps the ceiling flush.

Benefits

• High output for a small load: 7056 lm from just 50 W, an efficacy of 141 lm/W.

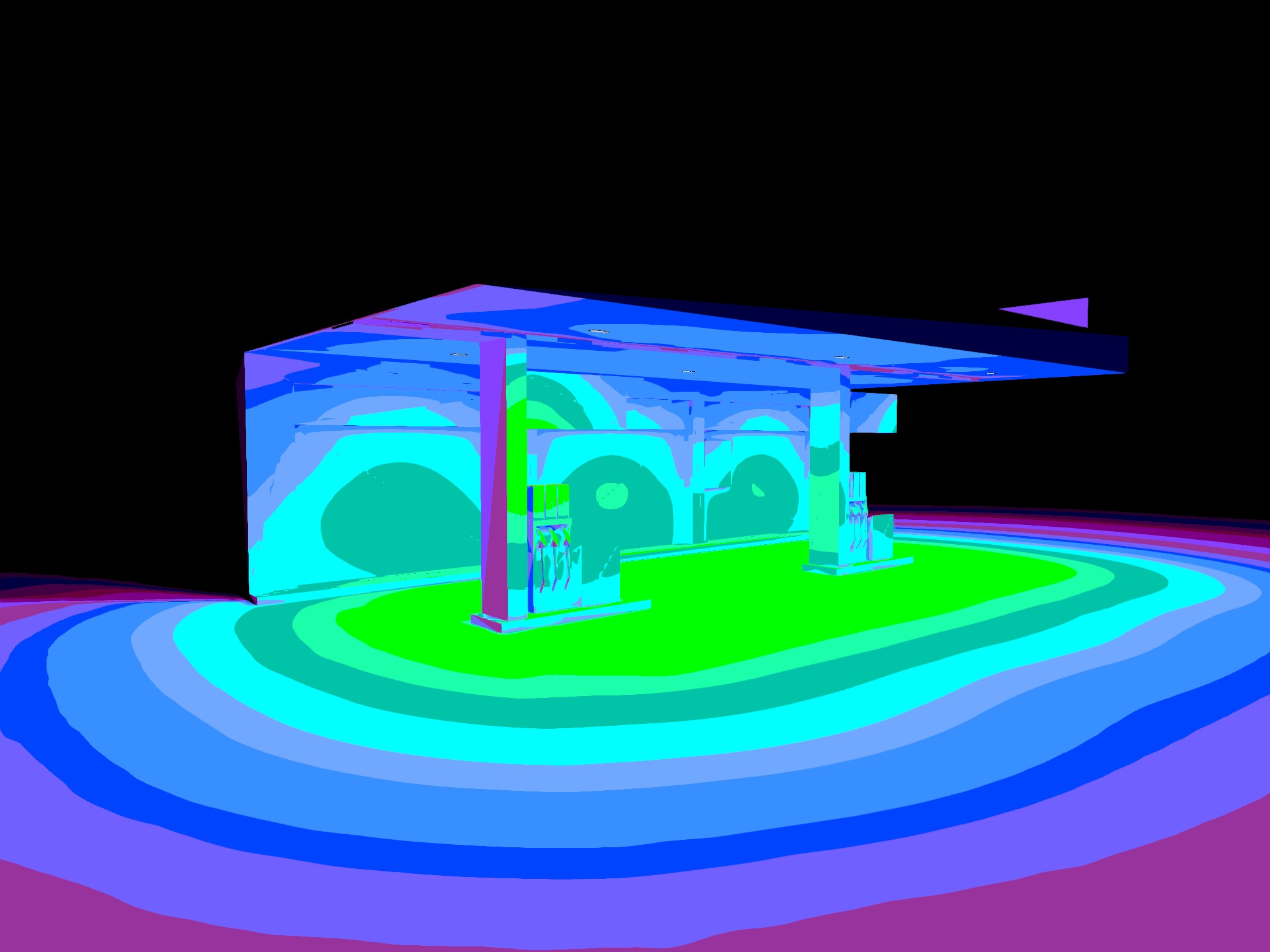

• Even cover across the island: the wide 90 degree optic reaches the perimeter of the pump area without dark patches.
• Made for exposed forecourts: IP66 keeps out blowing dust and washdown jets, IK10 handles knocks, and the extruded aluminium body sheds heat.
• Diffuser that survives strong sun: the UV-protected cover resists yellowing under constant solar load.
• Rare maintenance: LED service life is rated at 50,000 hours (L70).
• Simple wiring: the driver is on board and the unit connects to 220-240 V AC.

Technical specifications of the Astro II Mono LED floodlight

• Mounting type: recessed in the canopy
• Material: extruded aluminium, UV-protected diffuser
• Colour: RAL7040 grey
• Power: 50 W
• Luminous flux: 7056 lm
• Luminous efficacy: 141 lm/W
• Optical efficiency: 78 %
• Optic: wide, 90 degrees
• Colour temperature: 4000 K or 5000 K
• CRI: 80
• Control: on/off
• Supply: 220-240 V AC, driver included
• Protection class: I
• Ingress protection: IP66, IK10
• LED service life: 50,000 hours (L70)
• Dimensions: 520 x 355 mm (plate made to size)
• Weight: 4.7 kg

Applications and installation

The unit is designed for fuel station canopies, where it recesses into the soffit. Thanks to IP66 and IK10 you can also use it in other covered exterior areas with vehicle traffic: car washes, fuelling bays in logistics parks and fuel depots. Choose 4000 K for neutral light or 5000 K for stronger contrast at night. The aluminium plate is made to the size of your canopy cassettes.

Frequently asked questions

Does it need an external driver? No. The driver is inside the body and the supply is 220-240 V AC.

Can it match my canopy cassette size? Yes. The standard format is 520 x 355 mm, but the aluminium plate is cut to your requirement.

Which colour temperatures are available? You can choose 4000 K or 5000 K, both at CRI 80.
