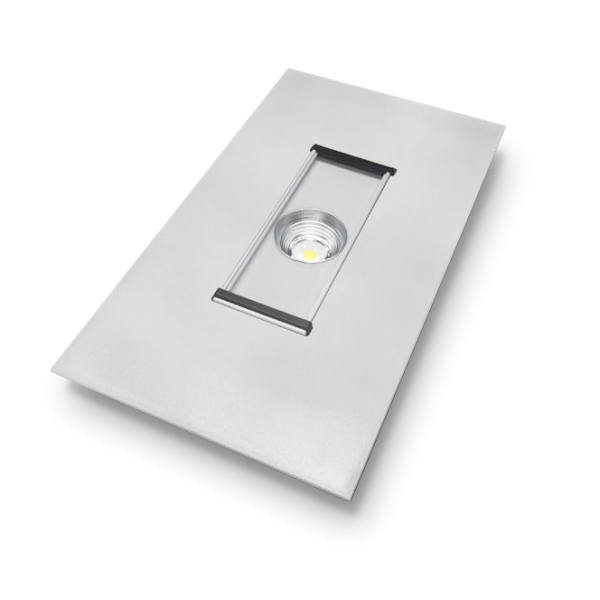

Astro II LED Floodlight for Petrol Stations 1 COB LED 50W

Astro II LED Floodlight for Petrol Stations 1 COB LED 50W

The Astro II LED floodlight at 50W uses a single Bridgelux COB LED and serves canopies with a small number of pumps. Operators choose it when they want even light over each pump from a recessed, sealed body that stays serviceable for years. It mounts on a 520 x 355 mm metal plate.

Benefits

• Wide distribution as standard: the Bridgelux COB LED produces even light directly over the pump.
• Protected optical compartment: IP66 against dust and water, with a UV-treated polycarbonate diffuser.
• Withstands knocks: impact rating IK10 for a busy forecourt.
• Choice of light colour: neutral white 4000 K, recommended, or cool white 5000 K on request.
• No external driver: the supply is inside the housing and accepts 90-230V AC.
• Light to handle: 4.7 kg, which keeps canopy installation straightforward.

Technical specifications

• Body material: electrostatically painted aluminium
• Diffuser: clear polycarbonate, UV protected
• Body colour: other colours available on request
• Light source: 1 Bridgelux COB LED, wide distribution
• Total power: 50W
• LED colour (configurable): neutral white 4000 K or cool white 5000 K
• Beam (configurable): wide or medium
• Colour rendering index: 80 for neutral white, 70 for cool white
• Supply: standard 230V AC; range 90-230V AC, 50-60Hz
• Driver: included, inside the housing
• Electrical insulation class: I
• Ingress protection: IP66
• Impact resistance: IK10
• Operating temperature: -20 degrees C to +40 degrees C
• Standard dimensions: 520 x 355 mm
• Weight: 4.7 kg
• Markings: CE, F-Mark; outdoor use

Applications and installation

The application is fuel station lighting. The floodlights are fixed to a metal plate that is recessed into the canopy soffit, giving a flush finish above the pump islands. The F-Mark permits mounting directly on normally flammable surfaces. With IP66 sealing, dust and washing water stay outside the optics, which suits open forecourts exposed to sand and humidity. Set the light colour at order stage, since it is factory configured. The luminaire is designed and produced in Europe.

Frequently asked questions

How many floodlights does one pump need? It depends on canopy height and the illuminance you are targeting. For twin pumps the series also offers the 2 COB LED version at 100W.

Why is neutral white recommended? Neutral white 4000 K has a colour rendering index of 80, against 70 for cool white, which helps with reading displays and judging colours.

Can it be cleaned with pressurised water? IP66 protects the optical compartment against powerful water jets and against dust.
