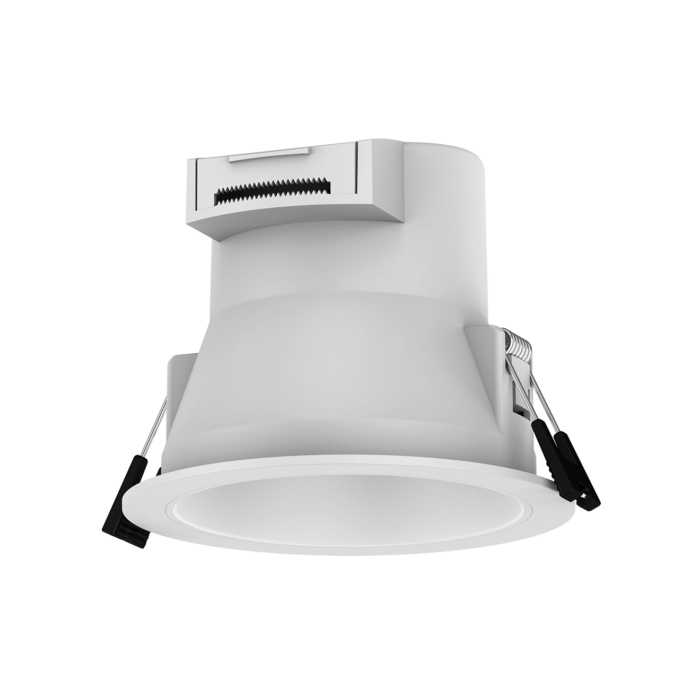

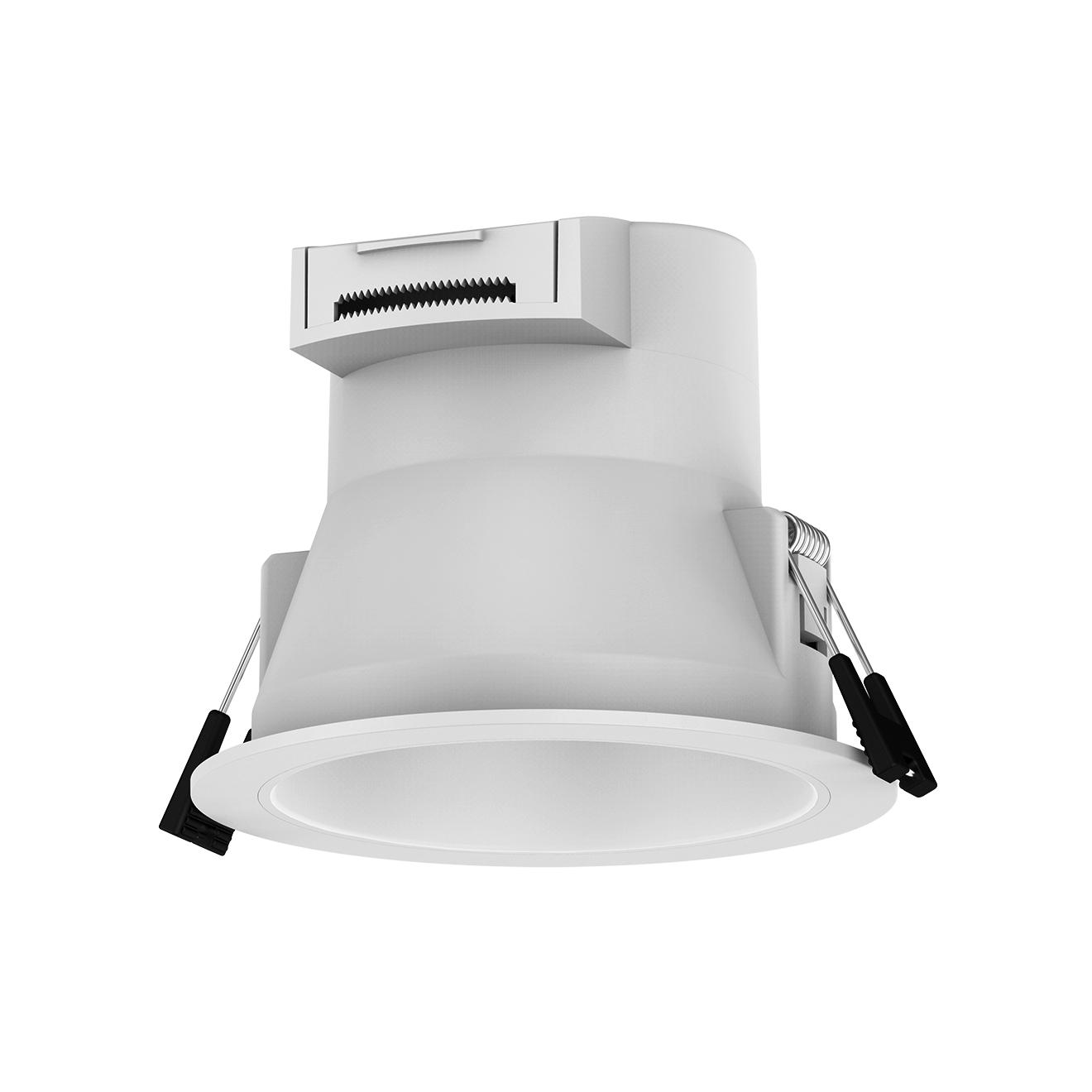

Invisilux D Recessed LED Spotlight 8W IP54

Invisilux D Recessed LED Spotlight 8W IP54

Rated IP54 on its exposed face, the Invisilux D recessed LED spotlight is a fixed 8 W downlight with a wide 60 degree beam. It answers the need for light in bathrooms, kitchens, changing rooms and laundries, where steam and splashes would finish off an ordinary spotlight. The driver sits inside the housing.

Benefits

• Handles moisture: the visible face below the ceiling is protected to IP54 against dust and splashes, while the part inside the ceiling is IP20.
• Broad coverage: the 60 degree beam spreads 635 lm over a large area, so one fitting works as general light in a small room.
• No separate driver: the power supply is built in, which shortens installation and removes a component to conceal.

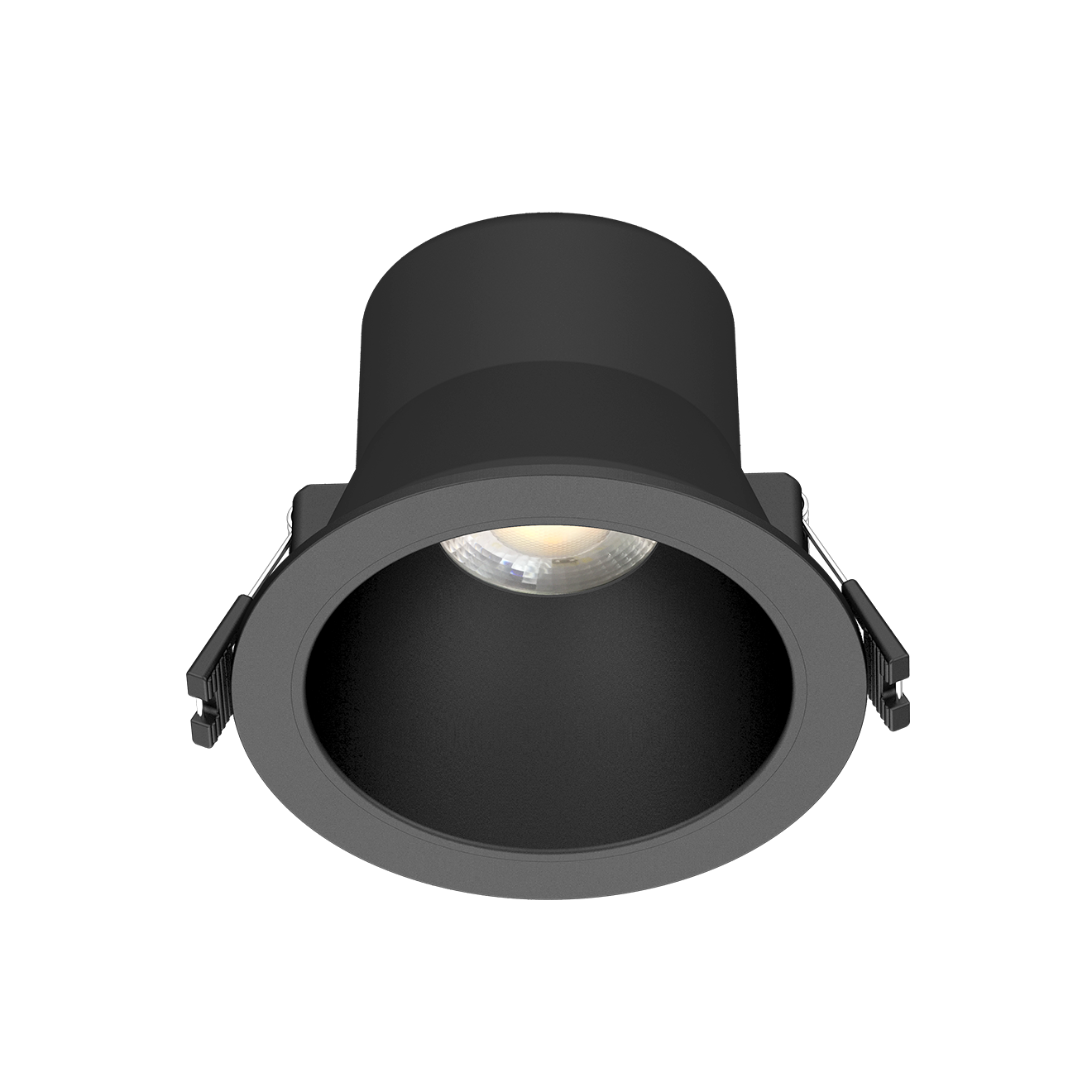

• Two finishes: white RAL9010 for standard ceilings or black for bathrooms with dark fittings.
• Compact body: 106 mm across and 84 mm deep, so it fits shallow suspended ceilings.

Technical specifications

• Mounting type: recessed in ceiling
• Material: aluminium
• Available colours: white RAL9010, black
• Power: 8 W
• Luminous flux: 635 lm
• Luminous efficacy: 80 lm/W
• Optical efficiency: 87 %
• Optic: wide, 60 degree beam
• Colour temperature (CCT): 3000 K or 4000 K
• Colour rendering index: CRI 80
• Control: on/off
• Supply voltage: 220 – 240 V AC
• Ingress protection: IP54 below the ceiling, IP20 inside the ceiling
• Electrical class: II
• Driver included: yes, integrated in the housing
• Adjustable: no
• Dimensions: 106 x 84 mm

Applications and installation

This Invisilux D recessed LED spotlight suits bathrooms, kitchens, changing rooms, laundries, service corridors and other humid indoor spaces, which makes it useful in Gulf apartments where wet rooms run hot and steamy. The 60 degree beam also serves hallways and dressing rooms that need even light rather than accent. Wire it to 220-240 V AC with on/off control. Remember that IP54 covers the face below the ceiling; the void above the ceiling must stay dry. European design, European manufacture.

Frequently asked questions

Can I fit Invisilux D above a shower cubicle? The exposed face is IP54, so it copes with splashes and steam. Respect the safety zones in the local wiring rules and agree the exact position with your electrician.

What does IP54 below the ceiling and IP20 inside mean? The visible part of the spotlight is sealed against dust and splashes. The hidden part is not, so the ceiling void has to remain dry.

How many spotlights does a bathroom need? It depends on area and ceiling height. With 635 lm and 60 degrees per unit, our team can work the number out from your plan.
