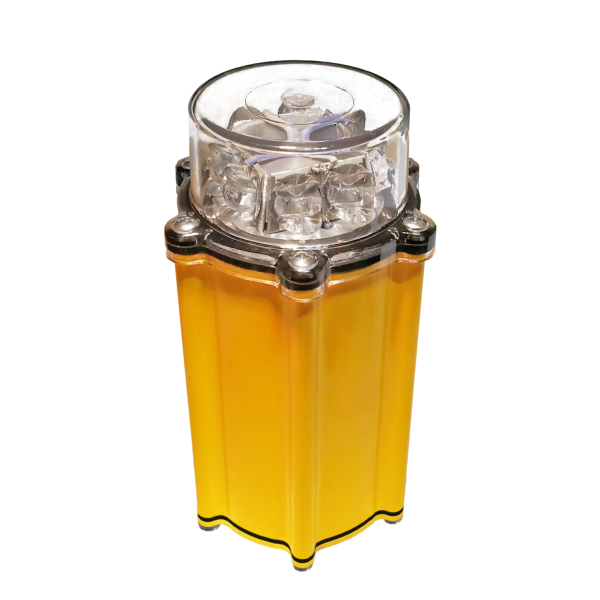

Approach Steady Heliport LED Light 20W Fixed Light

Approach Steady Heliport LED Light 20W Fixed Light

This Approach Steady heliport LED light is the fixed-light element of a visual approach system. It serves operators building an approach line to ICAO Annex 14 Volume 2, who need high intensity above 350 cd. Eight OSRAM LEDs at 20 W guide the helicopter onto the correct approach path.

Benefits

• The strongest output in the Hely range: above 350 cd, more than three times the FATO and Aiming lights.
• Steady white light: chromaticity within the CIE Chromaticity Boundary, with no flashing.
• Stepped dimming: 10%, 30% and 100% from the control panel, to ICAO Annex 14 V2.
• Panel supply: the fitting connects to the heliport control panel, which also provides the dimming.
• Mains option: a 90-230 V 50/60 Hz supply for sites with no dimming panel.
• Outdoor protection: IP66, IK10 and a UV-resistant polycarbonate diffuser, rated to +50 degrees C.

Technical specifications

• Housing material: electrostatically painted aluminium
• Housing colour: aviation yellow RAL 1004 (standard)
• Diffuser: clear polycarbonate, UV resistant
• Light source: 8 OSRAM LEDs
• Light colour: white, within the CIE Chromaticity Boundary
• Luminous intensity: above 350 cd
• Intensity settings: 10%, 30%, 100%
• Total power: 20 W
• Power source: DCR or control panel with dimming function
• Optional power supply: 90-230 V 50/60 Hz, no dimming
• Ingress protection: IP66
• Impact protection: IK10
• Electrical protection class: I
• Operating temperature: -40 degrees C to +50 degrees C
• Dimensions: D90 x 155 mm
• Weight: 0.8 kg
• Markings: CE, F-Mark, outdoor use

Applications and installation

The fitting belongs to heliport lighting and installs along the approach line, outside the FATO area. It works with the Hely control panel next to the FATO, TLOF and Aiming lights and the Beacon. At 155 mm high, the body stays below the usual obstacle envelope for the approach sector. Its IP66 rating suits exposed positions where dust and humidity are constant. Designed and manufactured in Europe.

Frequently asked questions

Why does the Approach Steady heliport LED light take 20 W against 10 W for FATO? The approach line must be read from further out, so the body carries 8 LEDs and delivers above 350 cd.

Does steady mean continuous light? Yes. The light emits fixed white light with no pulsing, unlike the Beacon.

Can I feed it straight from mains? Yes, at 90-230 V 50/60 Hz, but you then lose the dimming function.
