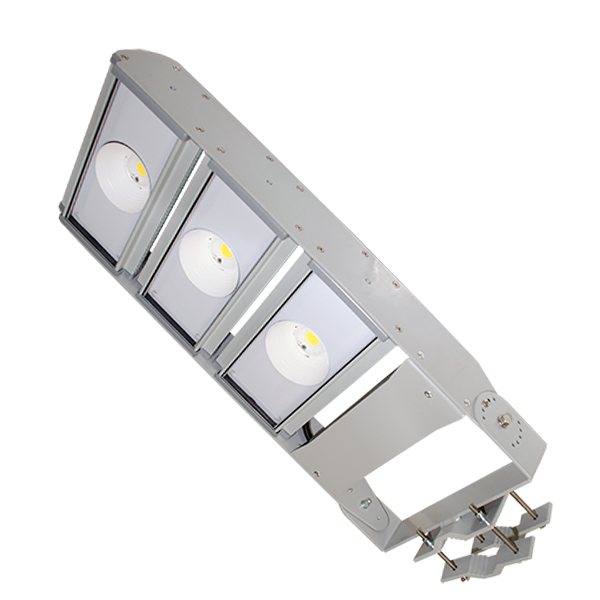

Proton LED Floodlight 3 COB LEDs 100-150W

Proton LED Floodlight 3 COB LEDs 100-150W

The Proton LED floodlight 3 COB model tops the series at 100-150 W, built for wide car parks, industrial hall facades and logistics yards. It serves consultants and contractors who light large areas from tall columns. Three COB modules with a focus chosen at order replace several low-power floodlights.

Benefits

• Up to 150 W from one body: three Bridgelux COB LEDs for tall columns and wide surfaces.
• Light where you need it: wide, medium, narrow or asymmetric focus, selected by mounting height.
• Aim after installation: the bracket lets you rotate the floodlight into position.
• Tolerant of the grid: the built-in power unit accepts 90-250 V at 50/60 Hz.
• Built for outdoors: IP65, anodised painted aluminium housing and a 3 mm UV-protected diffuser.
• Minimum 100 lm/W efficacy in cool white with CRI 70, while neutral and warm white deliver CRI 80.

Technical specifications

• Housing material: anodised aluminium, powder coated
• Housing colour: other colours available on customer request
• Diffuser: clear 3 mm polycarbonate, UV protected
• Light source: Bridgelux COB LED
• Number of LEDs: 3
• Total power: 100-150 W
• LED colours: warm white 3000 K, neutral white 4000 K, cool white 5000 K
• Beam focus: wide, medium, narrow, asymmetric
• Luminous output: minimum 100 lm/W in cool white
• CRI: 70 for cool white, 80 for neutral and warm white
• Supply: 90-250 V, 50/60 Hz, 230 V standard
• Power unit: included
• Insulation class: I
• Ingress protection: IP65
• Operating temperature: -20 degrees C to +40 degrees C
• Dimensions: 500 x 248 x 122 mm
• Weight: 6 kg
• Markings: CE, F mark for mounting on normally flammable surfaces, outdoor use

Applications and installation

The floodlight covers architectural and industrial work: facade lighting, car park lighting, production yard lighting and perimeter lighting. Fix the Proton LED floodlight 3 COB to a column, with or without a bracket arm, or to a flat vertical or horizontal surface. The body measures 500 x 248 x 122 mm and weighs 6 kg, so size the bracket and anchors accordingly. On long facades use the asymmetric focus, which throws light sideways. IP65 sealing keeps dust and rain off the optical chamber.

Frequently asked questions

When should I choose 150 W instead of 100 W? When the mounting height rises or the area to light is large. The power is set within the 100-150 W range at order.

Which colour temperature suits car parks? Neutral white 4000 K gives CRI 80 and a good balance of efficiency and comfort. Cool white 5000 K gives maximum efficiency.

Does it resist rain and dust? Yes. The ingress protection rating is IP65 and the polycarbonate diffuser is UV protected.
