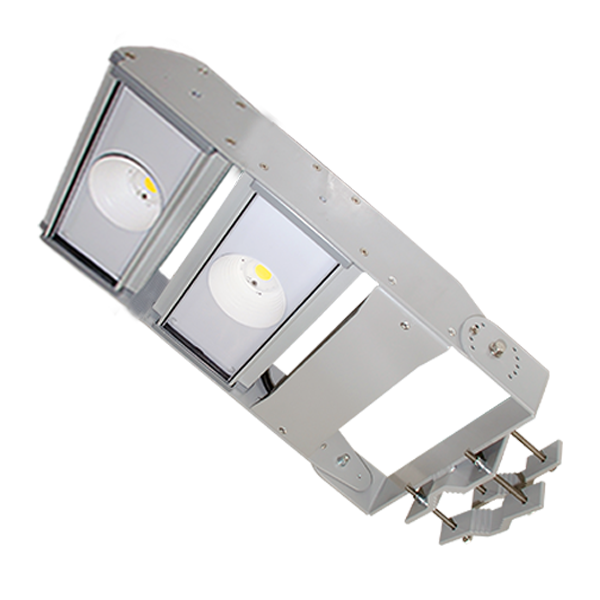

Proton LED Floodlight 2 COB LEDs 60-100W

Proton LED Floodlight 2 COB LEDs 60-100W

The Proton LED floodlight 2 COB model is the middle step of the series, rated 60-100 W, for car parks, hall facades and production yards. It suits companies replacing metal halide floodlights that want controlled light over large surfaces. Two COB modules and a focus chosen at order cut the number of columns you need.

Benefits

• Double power, same family: two Bridgelux COB LEDs between 60 and 100 W, for medium-size areas.
• Adjustment of plus or minus 45 degrees: the bracket lets you rotate the floodlight after mounting, without special tools.
• Built-in power unit: connect directly to 90-250 V at 50/60 Hz, with no external driver.
• Controlled beam: wide, medium, narrow or asymmetric focus for car park edges.
• Sealed against rain and dust: IP65 protection with a 3 mm UV-protected polycarbonate diffuser.
• Standard light colours: warm white 3000 K, neutral 4000 K or cool 5000 K, from 100 lm/W in cool white.

Technical specifications

• Housing material: anodised aluminium, powder coated
• Housing colour: other colours available on customer request
• Diffuser: clear 3 mm polycarbonate, UV protected
• Light source: Bridgelux COB LED
• Number of LEDs: 2
• Total power: 60-100 W
• LED colours: warm white 3000 K, neutral white 4000 K, cool white 5000 K
• Beam focus: wide, medium, narrow, asymmetric
• Luminous output: minimum 100 lm/W in cool white
• CRI: 70 for cool white, 80 for neutral and warm white
• Supply: 90-250 V, 50/60 Hz, 230 V standard, power unit built in
• Insulation class: I
• Ingress protection: IP65
• Operating temperature: -20 degrees C to +40 degrees C
• Rotation: plus or minus 45 degrees
• Dimensions: 400 x 248 x 122 mm
• Weight: 4.8 kg
• Markings: CE, F mark for mounting on normally flammable surfaces

Applications and installation

The application fields are architectural and industrial: facade lighting, car park lighting, production area lighting and perimeter lighting. Fix the Proton LED floodlight 2 COB to a column, with or without a bracket arm, or to a flat vertical or horizontal surface. At 4.8 kg, check the load capacity of the arm. Choose the wide focus for car parks and the asymmetric focus for facades. IP65 keeps dust and rain out of the optical chamber on exposed yards.

Frequently asked questions

How does it differ from the single COB model? Double the power at 60-100 W, two COB modules and a larger body of 400 x 248 x 122 mm.

How far can I tilt the floodlight? The bracket allows rotation of plus or minus 45 degrees from the mounting position.

Does it run on 110 V? Yes. The built-in power unit accepts any voltage between 90 and 250 V, at 50 or 60 Hz.
