Storage Battery High Voltage 81.92kWh BOS-G Pro, DEYE
Request a quote Request a quote
🚚
DHL Express → UAE:
from ~47,726 AED
· delivery ~2-3 days
Exact cost calculated at checkout based on your address · estimate
الوصف

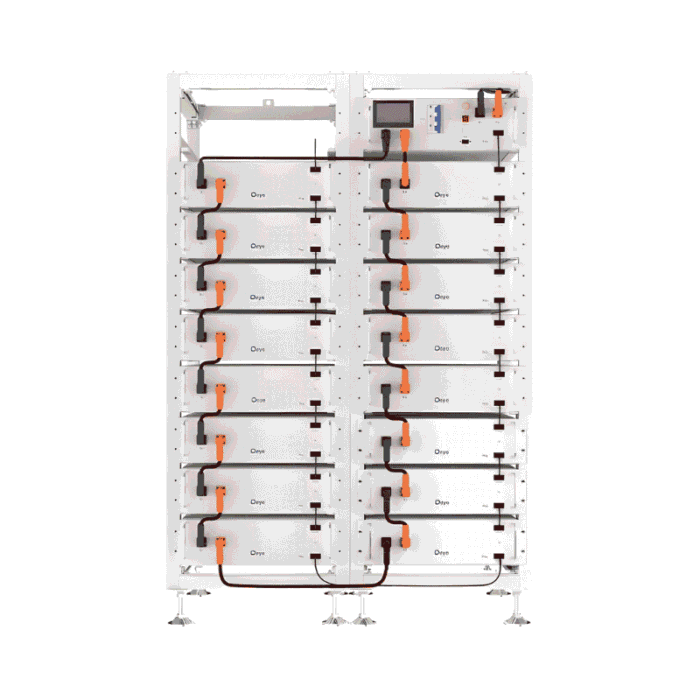

The Deye 81.92kWh BOS-G Pro is a comprehensive high-voltage (HV) energy storage system (ESS) designed for small-scale commercial and industrial (C&I) applications. This configuration, often referred to as the BOS-G80-Pro, consists of 16 individual 5.12kWh LiFePO₄ modules and a dedicated high-voltage control box.
System Configuration
- Total Energy: 81.92 kWh.
- Usable Energy: Approximately 73.73 kWh (at 90% Depth of Discharge).
- Module Composition: 16 x 5.12kWh BOS-G Pro battery modules.
- Control Unit: Includes 1 x BOS-G-PDU-2 cluster control box for high-voltage management.
- Physical Setup: Typically installed in two 19-inch racks (8 modules per rack) to accommodate the full 16-module cluster.
Technical Specifications (Full System)
| Feature | Specification |
|---|---|
| Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Nominal System Voltage | 819.2 V DC |
| Operating Voltage Range | 704 V to 934.4 V |
| Nominal Charge/Discharge Current | 100 A |
| Peak Discharge Current | 125 A |
| Rated DC Power | 81.92 kW |
| Cycle Life | ≥6000 cycles (25°C, 0.5C/0.5C, 70% EOL) |
| IP Rating | IP20 (Indoor use) |
| Operating Temperature | Charge: 0°C to 55°C / Discharge: -20°C to 55°C |
| System Weight | Approx. 837 kg (Modules + PDU + Racks) |
معلومات إضافية
| الوزن | 837 كيلوجرام |
|---|---|
| الأبعاد | 106 × 60 × 162,9 سنتيميتر |
| Brand | Deye |
