الوصف

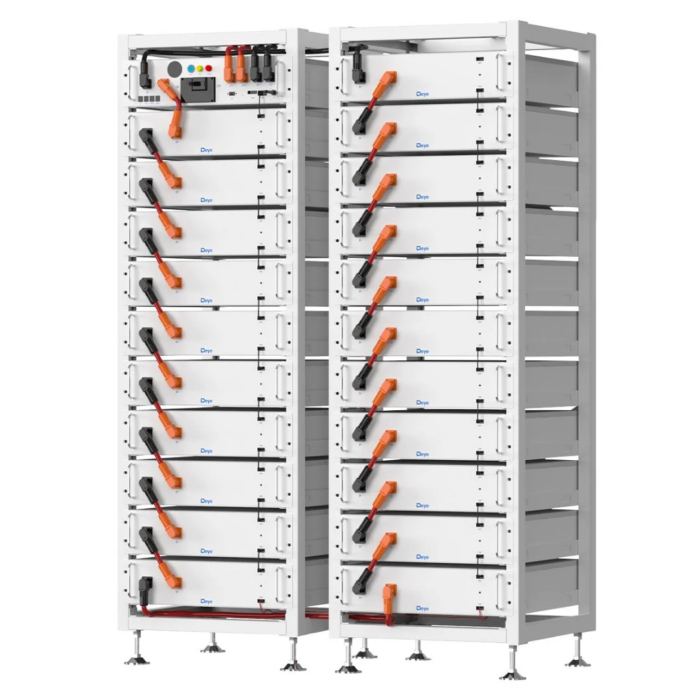

The DEYE BOS-A High Voltage (HV) storage battery system with a 161.28kWh capacity is a modular, high-performance solution designed for small-scale commercial and industrial (C&I) applications.
Technical Specifications
- System Configuration: Consists of 21 BOS-A modules connected in series, each providing 7.68kWh.
- Capacity:
- Total Energy: 161.28 kWh.
- Usable Energy (90% DoD): Approximately 145.15 kWh.
- Electrical Data:
- Nominal Voltage: 806.4V.
- Operating Voltage Range: 705.6V to 919.8V.
- Max Charge/Discharge Current: 160A.
- Rated DC Power: 129.02 kW.
- Battery Chemistry: Cobalt-free LiFePO4 (Lithium Iron Phosphate), offering high safety and thermal stability.
Components & Build
- Modules: 21 units of BOS-A-Pack 7.68 (38.4V / 200Ah each).
- Control Unit: 1 × BOS-A-PDU-2 High-Voltage Power Distribution Unit (1000V/160A).
- Racks: Typically includes two racks to house the 21 modules.
- Physical Properties:
- Total Weight: Approx. 1586 kg.
- System Dimensions: Typically 610 x 610 x 2350 mm (height varies by rack setup).
- Protection Rating: IP20 (indoor use).
معلومات إضافية
| الوزن | 1586 كيلوجرام |
|---|---|
| الأبعاد | 61 × 61 × 235 سنتيميتر |
| Brand | Deye |
