Saturn Adjustable RGB DMX LED Floodlight 3 LEDs

Saturn Adjustable RGB DMX LED Floodlight 3 LEDs

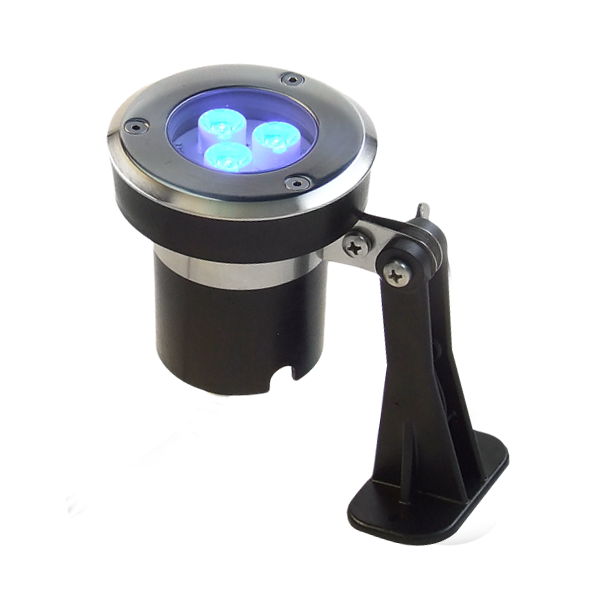

The Saturn adjustable RGB DMX LED floodlight with 3 LEDs is the most compact unit in the Saturn series. It weighs only 0.5 kg and aims directly at the object you light. Landscape designers and installers use it to pick out a tree, a sculpture or a walkway in colour, with DMX control and no external driver.

Benefits of the Saturn adjustable RGB DMX floodlight

• Precise aiming: the adjustable body points exactly at the feature you want to bring forward.
• Low weight: at 0.5 kg it fits light brackets and garden spikes without support structures.
• RGB mixing over DMX: one red LED (650 nm), one green (523 nm) and one blue (470 nm) are driven by the DMX driver in the housing.
• IP67 protection: it resists dust and temporary immersion, so it can sit in grass or in irrigated zones.
• Beam set at the factory: choose wide, medium, narrow or omnidirectional distribution.
• Timber mounting allowed: the F marking authorises fixing on normally flammable surfaces.

Technical specifications

• Luminaire type: adjustable RGB floodlight, Saturn series
• Number of LEDs: 3 (1 x red, 1 x green, 1 x blue)
• Light source: OSRAM LEDs
• LED colour: red 650 nm, green 523 nm, blue 470 nm
• Standard supply: 230V AC, 50Hz
• Optional supply: 12-24V DC power supply
• DMX driver: included, inside the housing
• Beam (configurable): wide, medium, narrow, omnidirectional
• Ingress protection: IP67
• Weight: 0.5 kg
• Use: outdoor
• Markings: CE, F

Applications and installation

Use this floodlight in commercial, residential and public spaces: gardens, parks, access routes, architectural lighting and general accent light. Connect it into the DMX line of the installation, where it accepts commands from any compatible DMX controller. Its small size suits planters, kerbs and any position where a large floodlight would be visually intrusive. IP67 keeps dust and irrigation water out of the housing. The unit is designed and manufactured in Europe.

Frequently asked questions

How much does the floodlight weigh? 0.5 kg. It is the lightest model in the Saturn series.

Does it survive being briefly covered by water? The rating is IP67, so the body handles dust and temporary immersion. For permanent underwater mounting, choose an IP68 model.

What does an omnidirectional beam mean? Light is spread in every direction, which helps when the unit stands in the middle of a planted area rather than aiming at one target.
