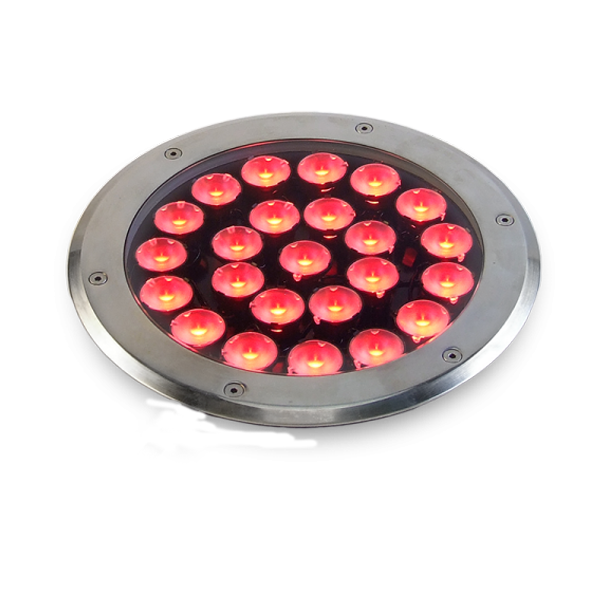

Atlas Recessed RGB DMX LED Floodlight 24 LEDs Outdoor

Atlas Recessed RGB DMX LED Floodlight 24 LEDs Outdoor

The Atlas recessed RGB DMX LED floodlight with 24 LEDs is the largest in-ground unit of the Atlas series. It is made for public and commercial schemes where facades, columns or mature trees need colour uplighting from a walk-over fitting that runs at extra-low voltage and answers to DMX.

Benefits of the Atlas recessed RGB DMX floodlight

• Output for tall surfaces: 8 LEDs on each RGB channel reach facades and trees that smaller fittings cannot cover.
• Flush installation: the 250 mm diameter recess is only 80 mm deep, so it sits level with the paving.
• Class III at 12-24V DC: extra-low voltage suits plazas and pedestrian areas.
• Integrated DMX control: the driver inside the housing removes any extra equipment beside the fitting.
• IP67 for ground level: dust, rain and temporary pooling do not affect the luminaire.
• Configurable beam: wide, medium, narrow or omnidirectional, chosen when you order.

Technical specifications

• Luminaire type: recessed RGB floodlight, Atlas series
• Number of LEDs: 24 (8 x red, 8 x green, 8 x blue)
• Light source: OSRAM LEDs
• LED colour: red 650 nm, green 523 nm, blue 470 nm
• Supply: 12-24V DC
• Electrical protection class: III
• DMX driver: included, inside the housing
• Beam (configurable): wide, medium, narrow, omnidirectional
• Ingress protection: IP67
• Mounting hole diameter: 250 mm
• Mounting hole depth: 80 mm
• Weight: 2.0 kg
• Use: outdoor
• Markings: CE, F

Applications and installation

Install the fitting on commercial, residential and public projects: architectural uplighting, gardens, car parks, parks and general ambient lighting. Prepare a recess 250 mm in diameter and 80 mm deep with drainage below, then bring in the 12-24V DC supply and the DMX line. Combine it with the 3-LED and 6-LED Atlas units, which use the same RGB wavelengths. IP67 keeps blown dust and wash-down water out at ground level. The luminaire is designed and manufactured in Europe.

Frequently asked questions

What size is the recess? 250 mm in diameter and 80 mm deep. The shallow depth allows installation in paving laid on a sand bed.

Which power supply do I need? A 12-24V DC unit sized for the number of luminaires on the circuit. The fitting is class III and never connects directly to 230V.

Can I use it in car parks? Yes, car park lighting is one of the listed applications. Check the traffic conditions of the mounting area with our team first.
