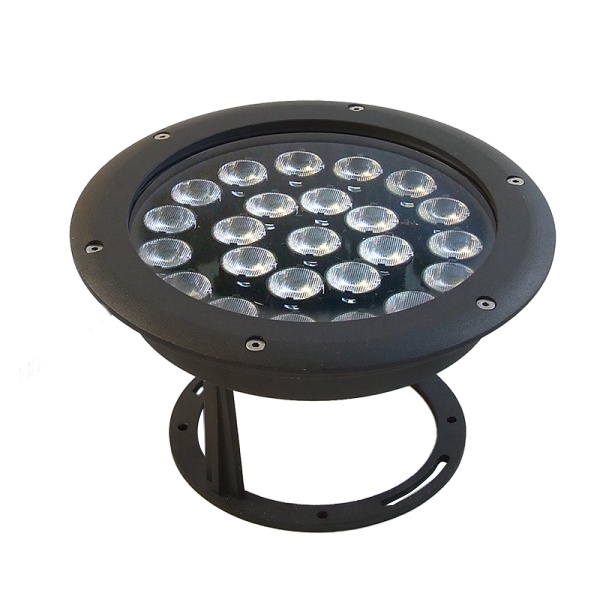

Saturn Adjustable RGB DMX LED Floodlight 24 LEDs

Saturn Adjustable RGB DMX LED Floodlight 24 LEDs

The Saturn adjustable RGB DMX LED floodlight with 24 LEDs is the flagship of the Saturn series. It is aimed at large architectural and landscape projects, where tall surfaces or long throw distances demand consistent output. DMX integrators use it for colour scenes on buildings, in parks and across commercial sites.

Benefits of the Saturn adjustable RGB DMX floodlight

• Output for long distances: 8 LEDs per colour create accents that stay visible on facades and mature trees.
• Fine aiming: the adjustable bracket lets the installer set the exact angle after commissioning.
• DMX-controlled shades: the red, green and blue channels are driven separately through the integrated driver.
• Environmental resistance: IP67 covers dust and temporary immersion, so the unit can sit at ground level.
• Selectable beam: wide, medium, narrow or omnidirectional, matched to the geometry of the surface.
• F marking: mounting directly on normally flammable surfaces is permitted.

Technical specifications

• Luminaire type: adjustable RGB floodlight, Saturn series
• Number of LEDs: 24 (8 x red, 8 x green, 8 x blue)
• Light source: OSRAM LEDs
• LED colour: red 650 nm, green 523 nm, blue 470 nm
• Standard supply: 230V AC, 50Hz
• Optional supply: 12-24V DC power supply
• DMX driver: included, inside the housing
• Beam (configurable): wide, medium, narrow, omnidirectional
• Ingress protection: IP67
• Weight: 2.1 kg
• Use: outdoor
• Markings: CE, F

Applications and installation

The floodlight works on commercial, residential and public projects. Typical applications are architectural lighting, gardens and parks, access routes and general accent lighting. Fit the unit on its adjustable bracket at ground level or on a wall bracket, then address it on the DMX bus alongside other Saturn, Galaxy or Atlas units, which share the same RGB wavelengths. IP67 keeps windblown dust out of the housing. The luminaire is designed and manufactured in Europe.

Frequently asked questions

Can it be combined with the 3-LED and 6-LED Saturn units? Yes. All of them use red 650 nm, green 523 nm and blue 470 nm LEDs, so colours stay uniform within a DMX scene.

How much does it weigh? 2.1 kg. Choose a bracket rated for that mass and for wind exposure.

Is the supply 230V or extra-low voltage? 230V AC at 50Hz as standard. On request, the product ships for a 12-24V DC power supply.
