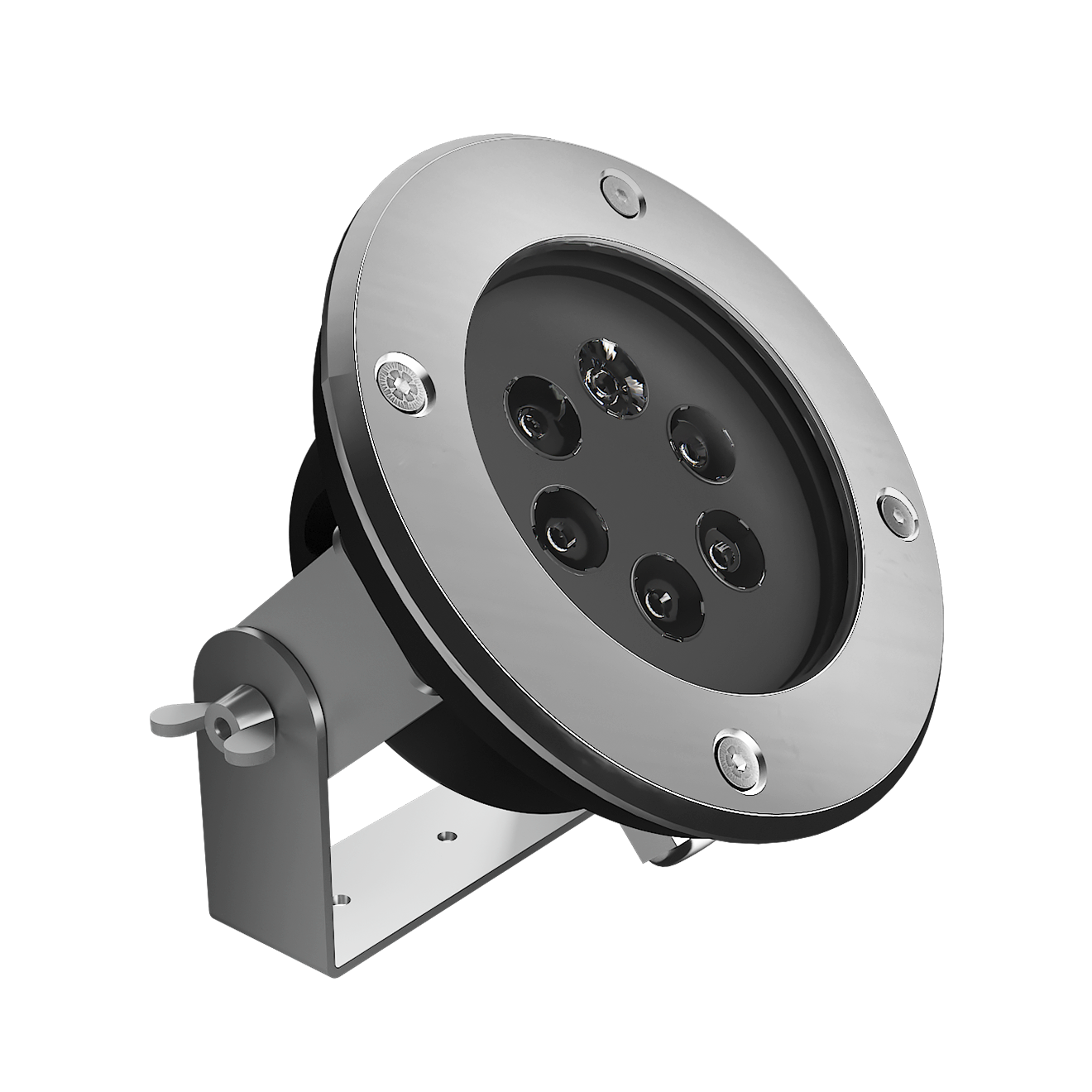

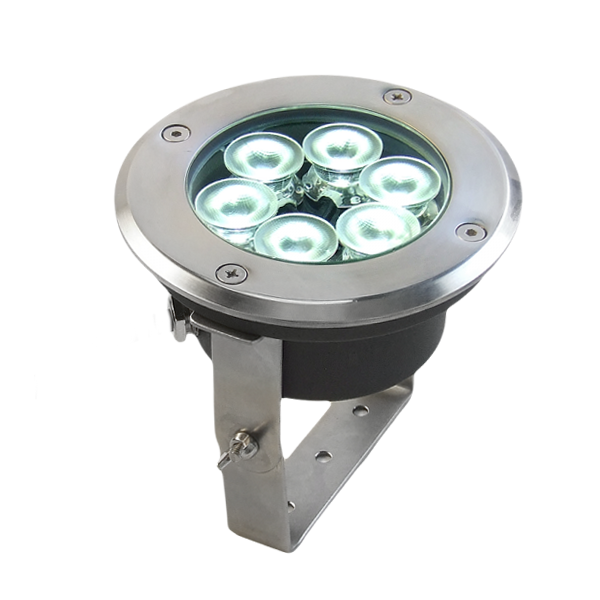

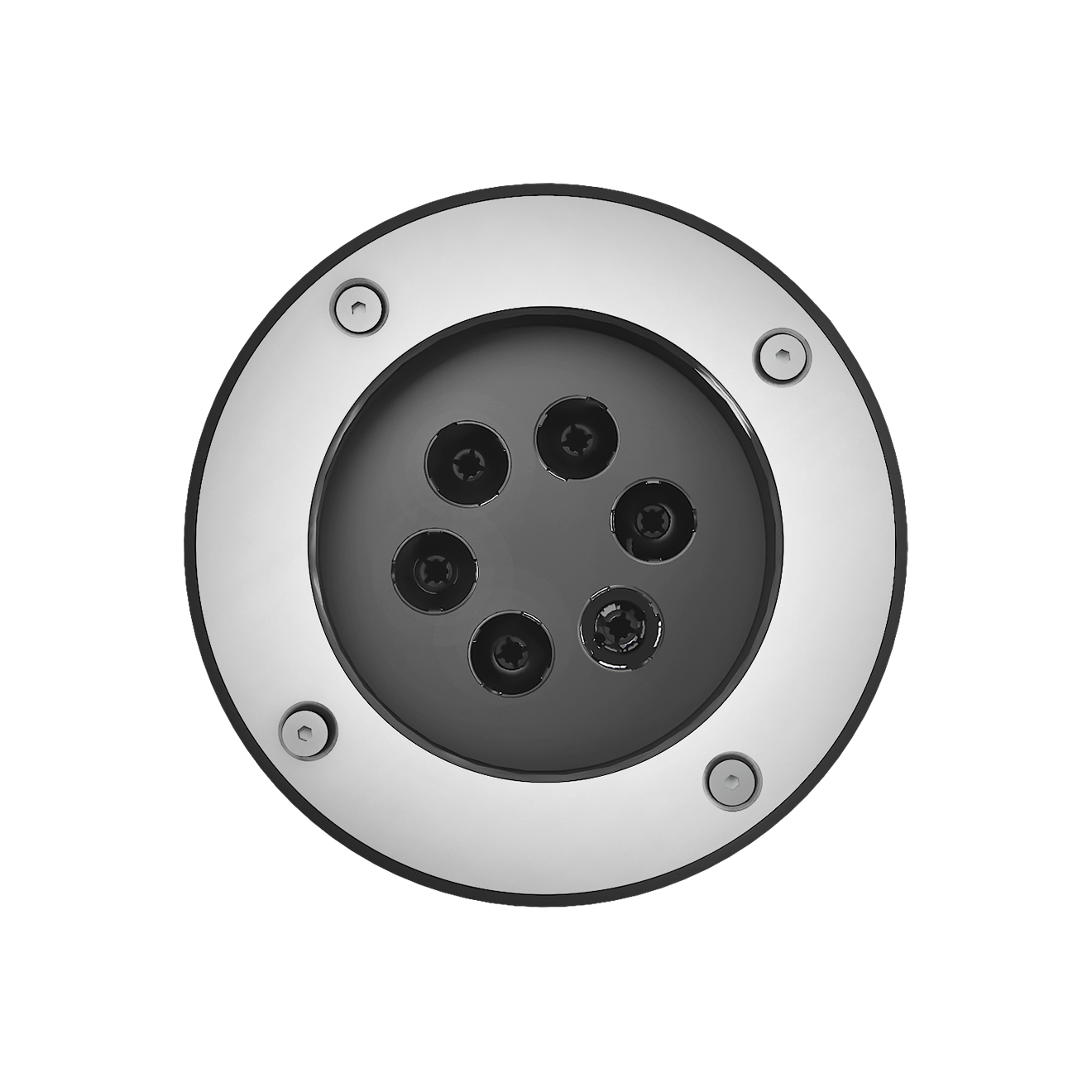

Saturn 6 Adjustable LED Floodlight 8-14.2W Outdoor

Saturn 6 Adjustable LED Floodlight 8-14.2W Outdoor

The Saturn 6 adjustable LED floodlight is the highest output version of the Saturn series: 8 W or 14.2 W in the same 130 x 111 mm housing. It answers architects and installers who need more flux on facades, columns and walls without a bigger body. One compact floodlight covers a medium surface.

Benefits of the Saturn 6 adjustable LED floodlight

• Up to 1657 lm at 14.2 W, with efficacy up to 116 lm/W, so you can mount it further from the surface than Saturn 3 or Saturn 5.
• Five optics (wide, medium, narrow, elliptical, wall grazing) let you match the beam to the surface.
• IP67 and IK10 protection, with a powder-coated aluminium housing that keeps dust and driven rain out.
• Transformer inside the housing, so you install the unit directly, without a separate driver.
• Warm, neutral or cool white, with coloured LEDs available on request.
• Adjustable optical system and a choice of on/off, DALI or 1-10V control.

Technical specifications

• Mounting type: adjustable outdoor floodlight
• Housing material: aluminium
• Colour: black RAL9005, powder coated
• Power range: 8 W – 14.2 W
• Luminous flux: 811 – 1657 lm, depending on power and optic
• Luminous efficacy: 102 – 116 lm/W
• Available optics: wide, medium, narrow, elliptical, wall grazing
• Correlated colour temperature: 3000 K, 4000 K, 5000 K; coloured LEDs on request
• Colour rendering index: CRI 80
• Control: on/off, DALI, 1-10V
• Ingress protection: IP67
• Impact resistance: IK10
• Electrical insulation class: I
• Driver: included, transformer inside the housing
• Adjustable: yes
• Dimensions: 130 x 111 mm

Applications and installation

The Saturn 6 adjustable LED floodlight covers house and small office facades, columns, walls, gates and landscape features of medium height. Place the wall grazing optic at the base of a wall for a raking effect. Use the narrow optic on columns and trees, and the wide or elliptical optic on broad surfaces. Mount the unit on any flat outdoor surface, including areas exposed to water, thanks to the IP67 rating.

Frequently asked questions

How does Saturn 6 differ from Saturn 5? It offers higher output steps of 8 W and 14.2 W and up to 1657 lm, in the same 130 x 111 mm housing. It does not include the wall washer optic.

What output does the 14.2 W version give? Between 1503 and 1657 lm, depending on the optic. The 8 W version gives 811 to 896 lm.

Can you dim it? Yes, in the DALI and 1-10V versions. The on/off version does not allow dimming.
