Office Line 2200 Suspended LED Luminaire 80W Offices

Office Line 2200 Suspended LED Luminaire 80W Offices

The Office Line 2200 suspended LED luminaire is a 2200 mm linear profile with direct and indirect emission, 80 W and 5276 lm. It is made for designers and fit-out contractors equipping open-plan offices, meeting rooms and receptions. A single fitting lights both the desk surface and the ceiling plane, at CRI 90.

Benefits

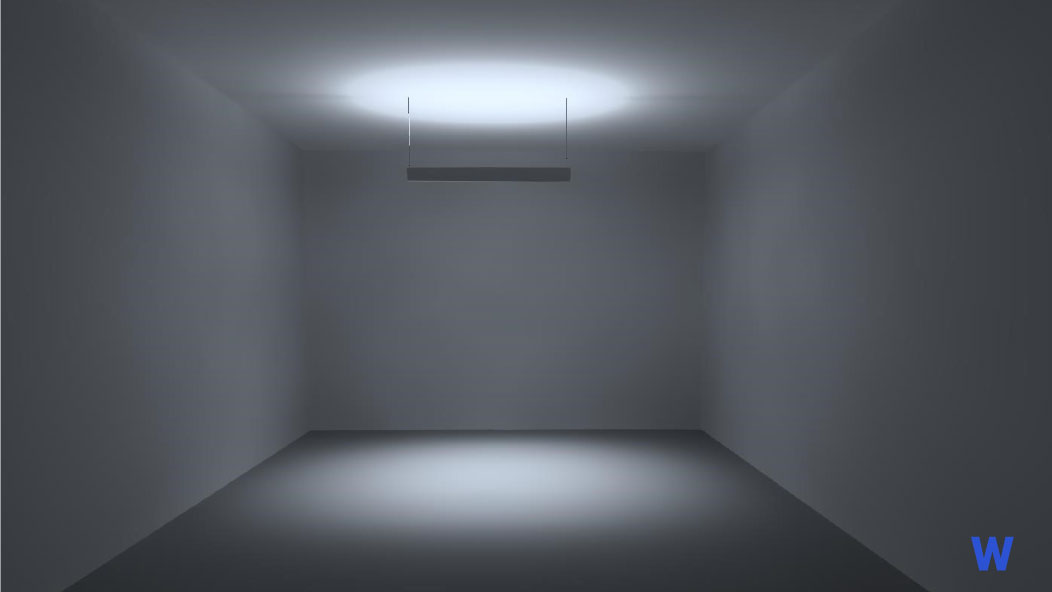

• Up and down light: direct output on the desk and indirect output on the ceiling remove harsh contrast.
• True colour: CRI 90 renders documents, screens and material samples correctly.
• Matched runs: SDCM under 3 (ANSI) keeps every luminaire in a line at the same shade of white.

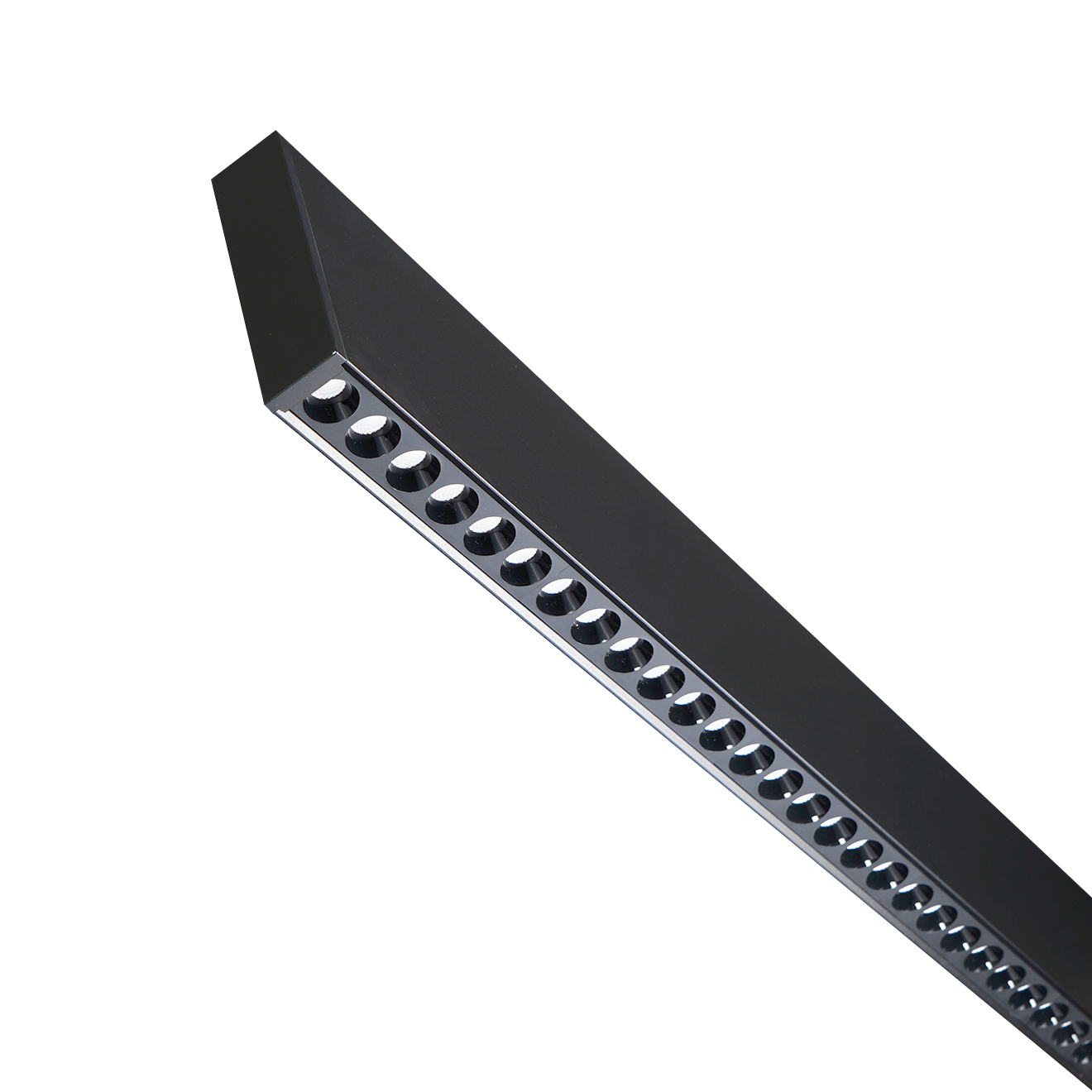

• Slim profile: the anodised aluminium extrusion is only 25 mm wide, so it stays visually quiet.
• 24 V DC supply: one common power supply can feed several luminaires on the same run.
• Suspension kit: the dedicated mounting system is available as an accessory.

Technical specifications

• Mounting type: suspended
• Housing material: anodised aluminium
• Colour: anodised black (RAL9010)
• Power: 80 W
• Luminous flux: 5276 lm
• Luminous efficacy: 66 lm/W
• Optic: wide
• Light direction: up and down
• Colour temperature: 4000 K
• CRI: 90
• Colour consistency: SDCM under 3 (ANSI)
• Control: on/off
• Supply voltage: 24 V DC
• Power supply: not included
• Ingress protection: IP20
• Electrical insulation class: I
• Adjustable: no
• Available accessories: suspension mounting kit
• Dimensions: 2200 x 25 x 100 mm

Applications and installation

The Office Line 2200 luminaire fits open-plan offices, meeting rooms, receptions, libraries and coworking floors. Hang it above workstations with the accessory suspension kit, aligned with the desk rows. The luminaire runs at 24 V DC, so size a separate power supply for the number of fittings on the circuit. With IP20 protection it belongs indoors, in conditioned office space. Engineered and produced in Europe.

Frequently asked questions

Is the power supply included? No. The Office Line 2200 luminaire runs at 24 V DC and you select the supply according to the number of fittings connected.

What does SDCM under 3 mean? It measures colour consistency between fittings. Below 3, the difference in tone between two adjacent luminaires is not visible.

Can it be dimmed? The available version is on/off, without dimming.
