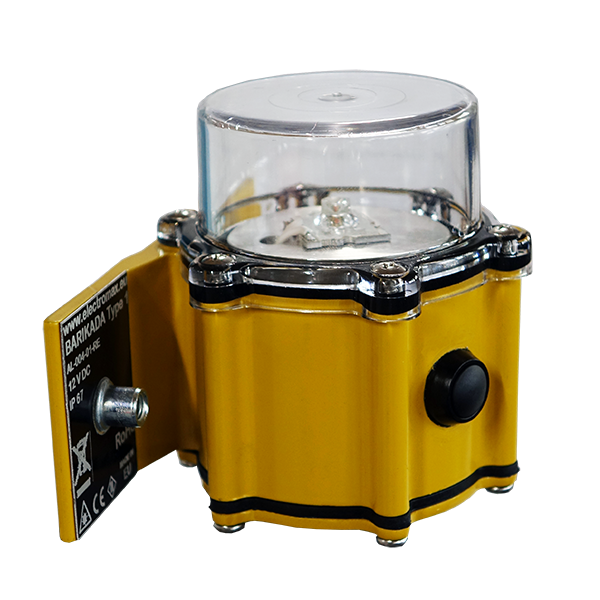

Barikada Obstacle LED Light 12V DC 1.5W

Barikada Obstacle LED Light 12V DC 1.5W

The Barikada obstacle LED light marks obstacles on airports with an omnidirectional red beam. It is made for aerodrome managers and contractors working inside the aircraft movement area. A wide vertical angle keeps the unit visible at long and short range, including at dusk, for pilots and for vehicle drivers alike.

Benefits

• Long runtime: a draw of only 1.5 W means a 12 V 12 Ah battery covers 16-hour daily cycles.
• Switches itself on: the built-in photocell starts the light at dusk with no intervention.
• Visible through 360 degrees: omnidirectional optics with a luminous intensity above 10 cd.
• Resists knocks: a clear polycarbonate diffuser rated IK10.
• Flexible mounting: an optional magnetic mounting device and an additional twilight sensor.
• Easy to reposition: just 0.9 kg and a compact 140 x 70 mm footprint.

Technical specifications

• Housing material: electrostatically painted aluminium
• Housing colour: aviation yellow RAL 1004 (standard)
• Diffuser: clear polycarbonate, impact resistant IK10
• Light source: 1 high-intensity OSRAM LED
• Light colour: red, omnidirectional beam
• Luminous intensity: above 10 cd
• Power supply: 12 V DC (standard)
• Power consumption: 1.5 W
• Battery autonomy: 12 V 12 Ah battery for 16-hour daily cycles
• Photocell: built in
• Options: magnetic mounting device, twilight sensor
• Ingress protection: IP65
• Impact protection: IK10
• Electrical protection class: I
• Operating temperature: -20 degrees C to +40 degrees C
• Dimensions: 140 x 70 mm
• Weight: 0.9 kg
• Markings: CE, F-Mark, outdoor use

Applications and installation

Barikada marks temporary and permanent airport obstacles: plant, trenches, work zones and apron boundaries. It runs from a 12 V battery, so it never depends on the airfield mains. The optional magnetic device clamps it quickly to machinery or steel barriers. Note the rated ceiling of +40 degrees C: in Gulf summers, plan for shaded positions and check the exposure of each unit. Designed and manufactured in Europe.

Frequently asked questions

How long does the Barikada obstacle LED light run on a battery? A 12 V 12 Ah battery is enough for 16-hour daily operating cycles.

Must I switch it on by hand each evening? No. The built-in photocell starts the light automatically as ambient light falls.

Can apron drivers see it too? Yes. The omnidirectional red beam with a wide vertical angle is visible from the air and from the ground.
