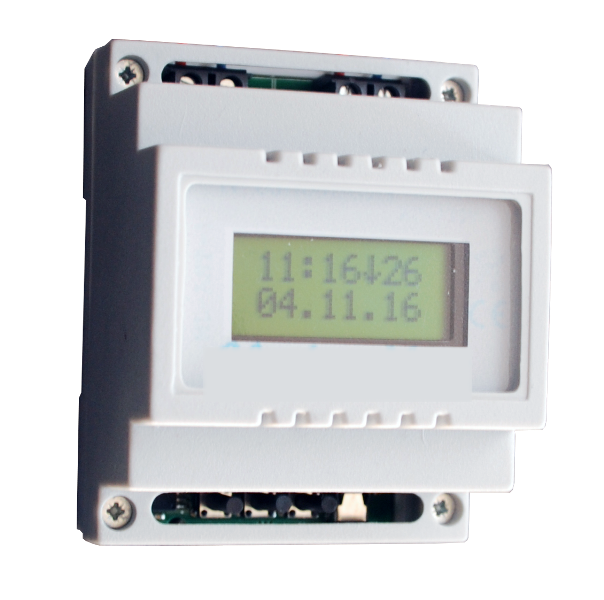

ASTRO Astronomical Time Switch for Street Lighting

ASTRO Astronomical Time Switch for Street Lighting

The ASTRO astronomical time switch turns public lighting on and off at the real sunset and sunrise times. It serves municipalities, lighting operators and car park managers. They stop correcting the schedule every two weeks. It removes the errors of photocells affected by haze, dust or drift, and draws only 1 W.

Benefits

• Automatic correction all year: the switch adjusts the on and off times daily, from the site coordinates.
• No photocell needed: you stop depending on a sensor that dust, cloud or dirt can mislead.
• 16 A switching per channel, with a rated load of 3000 VA, enough for a standard feeder point.
• Energy saving programme and a separate holiday programme, both configured from the text menu.
• CR2032 battery with a 10 year life: the programme survives every supply interruption.
• Automatic summer and winter time change, with no operator intervention.

Technical specifications

• Type: control time switch with astronomical programme
• Versions: 1 or 3 relays, individual programme per relay
• Switching current: 16 A per channel
• Rated load: 3000 VA
• Supply voltage: 230 V AC, 50 Hz
• Power consumption: 1 W
• Electrical protection class: II
• Internal battery: CR2032, 10 year life
• Minimum programming step: 1 minute
• Operating modes: automatic, manual
• Programmes: daily sunset and sunrise adjustment, energy saving, holidays, automatic summer and winter change
• Interface: text menu, 3 configuration buttons, relay status indicator
• Ingress protection: IP20
• Operating temperature: -20 degrees C to +40 degrees C
• Dimensions: 63 x 89 x 60 mm
• Mounting: 35 mm DIN rail (omega)
• Marking: CE

Applications and installation

You install the ASTRO astronomical time switch inside the feeder pillar cabinet, on a 35 mm DIN rail. It drives the contactors of the lighting circuits. It covers street lighting, car park lighting, architectural lighting and general lighting in commercial, residential and public areas. The IP20 rating means the unit belongs inside a protected enclosure or distribution board, never in the open air.

Frequently asked questions

Must I reprogram the unit every season? No. The astronomical programme calculates sunset and sunrise for each day and changes to summer or winter time by itself.

Can I control several circuits separately? Yes, with the 3 relay version. Each relay keeps its own programme, for example street lighting on one and architectural lighting on another.

What happens during a power cut? The internal CR2032 battery keeps the time and the programme. Its rated life is 10 years.
