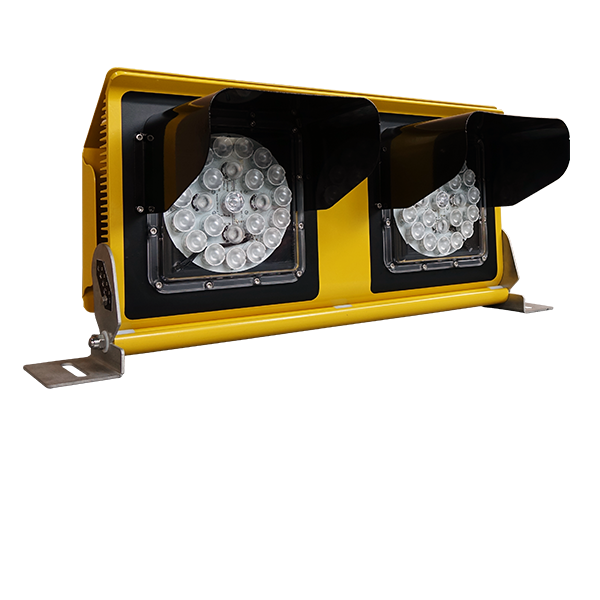

Waggy Runway Guard LED Light 20W for Runways

Waggy Runway Guard LED Light 20W for Runways

This Waggy runway guard LED light warns pilots and ground vehicle operators working on taxiways that they are about to enter an active runway. It suits airports that need a flashing signal readable in any weather. The body withstands frost, strong wind, salt vapour and jet blast.

Benefits

• A signal hard to ignore: alternating flashes, 30-60 per minute, inside a main beam of plus or minus 8 degrees vertically and horizontally.
• Precise aiming: the beam adjusts vertically to 0, 5, 10, 15 or 20 degrees.
• Built for extremes: operation from -40 degrees C to +50 degrees C, at 0-100% humidity and wind up to 480 km/h.
• Low draw: only 20 W, with OSRAM LEDs and a supply of 230 V AC or 6.6 A from a CCR.
• Long service life in coastal air: anodised aluminium, anti-corrosion materials and electrostatic RAL 1004 paint, tested against salt vapour and oil particles.
• Impact safety: it mounts on a 2 inch pipe with a frangible coupling, as airport practice requires.

Technical specifications

• Housing material: anodised aluminium, electrostatically painted
• Housing colour: aviation yellow RAL 1004 (standard)
• Diffuser: clear polycarbonate
• Light source: OSRAM LED
• Power consumption: 20 W
• Power supply: 230 V AC 50 Hz or 6.6 A from a CCR
• Flash rate: 30-60 flashes per minute, alternating
• Main beam: plus or minus 8 degrees vertical and horizontal
• Vertical adjustment: 0, 5, 10, 15, 20 degrees
• Ingress protection: IP65
• Electrical protection class: I
• Operating temperature: -40 degrees C to +50 degrees C
• Humidity: 0-100%
• Wind resistance: up to 480 km/h
• Mounting system: standard pipe of 2 inch outside diameter, frangible coupling
• Dimensions: 710 x 400 mm
• Weight: 14 kg
• Markings: CE, F-Mark, outdoor use

Applications and installation

Install the light where a taxiway meets the runway, on a standard pipe with a frangible coupling. Its field is airport lighting: taxiways, holding points and areas with mixed aircraft and vehicle traffic. Choose the supply that matches your infrastructure, either 230 V AC mains or a 6.6 A CCR series circuit. The salt vapour, UV and tropical humidity ratings make it a sound choice for coastal Gulf airports. Designed and manufactured in Europe.

Frequently asked questions

What are alternating flashes? The light emits alternating pulses at 30-60 per minute, so the warning stays visible at all times.

Does it withstand jet blast? Yes. The body is built for wind up to 480 km/h, oil particles, salt vapour, UV exposure and tropical humidity.

How is the Waggy runway guard LED light powered? You have two options: 230 V AC 50 Hz mains, or a series circuit with a 6.6 A constant current regulator.
