Proton S Street LED Floodlight 1 COB LED 30-50W

Proton S Street LED Floodlight 1 COB LED 30-50W

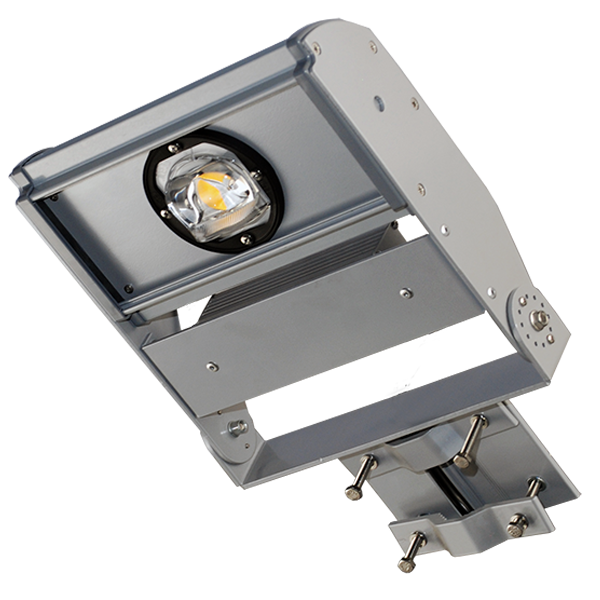

The Proton S street LED floodlight with 1 COB LED uses a single 30-50 W Bridgelux source. A silicone lens focuses it. Architects, building managers and municipalities pick it as a compact unit for facades, car parks and small streets. You adapt the focusing on request to the mounting height.

Benefits

• Single COB source: the Bridgelux chip gives even light, with no multiple hot spots on a facade.
• Focusing on request: the outdoor grade silicone lens is chosen to match the pole height.
• Three colour temperatures: warm white 3000 K, neutral white 4000 K or cool white 5000 K. CRI reaches 80 on the warm and neutral versions.
• Minimum 110 lm/W efficacy for cool white, at a consumption of 30-50 W.
• Tilt of plus or minus 45 degrees: the bracket lets you aim the elliptical asymmetric beam after installation.
• Anodised and coated aluminium housing, with a 3 mm diffuser and an IK10 impact class.

Technical specifications

• Housing material: anodised aluminium, electrostatically powder coated
• Diffuser: 3 mm clear polycarbonate, UV protected
• Housing colour: other colours available on customer request
• Number of LEDs: 1 COB LED
• Light source: Bridgelux COB
• Total power: 30-50 W
• Luminous efficacy: minimum 110 lm/W for cool white
• Colour rendering index (CRI): 80 for warm and neutral white, 70 for cool white
• LED colour (configurable): warm white 3000 K, neutral white 4000 K, cool white 5000 K
• Focusing: elliptical, silicone lens, other beams on request
• Supply: 90-250 V AC, 50/60 Hz, built in driver
• Electrical insulation class: I
• Power factor: above 0.95
• Total harmonic distortion: below 20%
• Ingress protection: IP65
• Impact resistance: IK10
• Operating temperature: -20 degrees C to +40 degrees C
• Tilt adjustment: plus or minus 45 degrees
• Dimensions: 300 x 248 mm
• Weight: 3 kg
• Markings: CE, F (mounting on normally flammable surfaces)

Applications and installation

The unit covers facade lighting, car park lighting and street lighting in architectural, commercial, residential and public projects. Warm white 3000 K flatters heritage buildings, while the neutral version fits car parks. The F marking allows direct mounting on normally flammable surfaces. Fix the 3 kg body on a pole, bracket or wall. Then set the tilt within 45 degrees.

Frequently asked questions

What is a COB LED? COB means several LED chips mounted on one substrate. The result is a single luminous surface, easy to focus with one lens.

Can I order a different beam? Yes. The standard focusing is elliptical, and on request the unit takes other lenses suited to the mounting height.

Is it enough for a street? At 30-50 W it fits narrow streets, paths and small car parks. For wide roads choose the 2 or 3 COB LED models.
