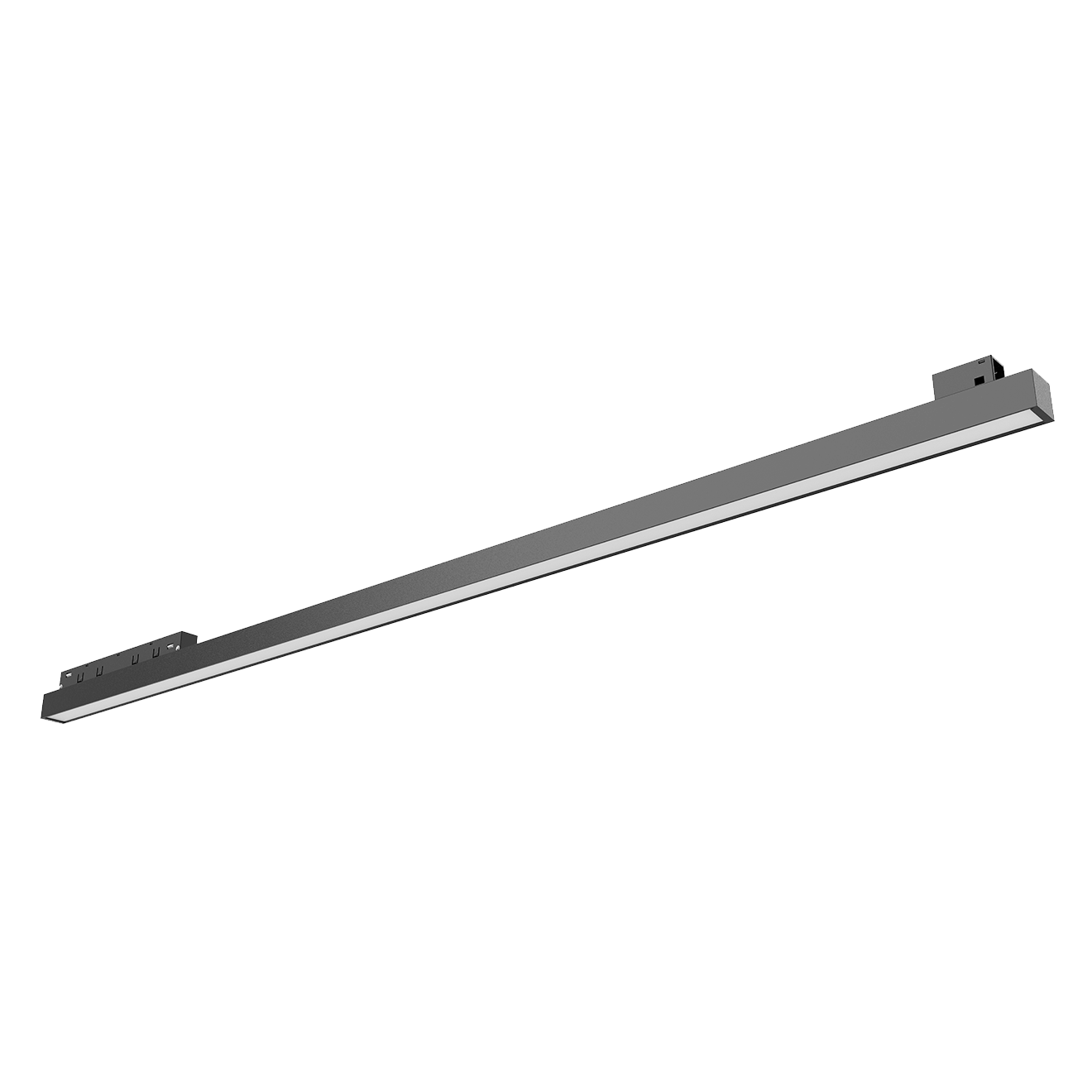

Luminesse Magnetic Track LED Luminaire 48V 20W

The Luminesse magnetic track LED luminaire is a 900 mm linear module that holds magnetically to 48 V DC track. It is intended for interior architects, electricians and owners fitting out homes, offices and retail units with track systems. It supplies even general light along the track, with a 100 degrees distribution and CRI 90 colour rendering.

Benefits

Magnetic fixing without tools: the module sits on the track and moves at any time, with no dismantling.
General light, not accent: the omnidirectional 100 degrees distribution covers whole zones.
Consistent colour: CRI 90 and SDCM under 3 Step (ANSI) at the light source.
Low voltage safety: 48 V DC operation with insulation class III.
Very slim profile: 23 mm wide by 40.8 mm high, in a black finish.
Track compatibility: works with the surface-mounted 48 V DC magnetic track supplied in 3 m lengths.

Technical specifications

Mounting type: 48 V DC magnetic track
Housing material: aluminium
Colour: RAL9010 black
Power: 20 W
Luminous flux: 1357 lm
Luminous efficacy: 70 lm/W
Light distribution: omnidirectional, 100 degrees
Colour temperature: 3000 K or 4000 K
CRI: 90
Colour consistency: SDCM under 3 Step (ANSI)
Control: on/off
Ingress protection: IP20
Insulation class: III
Power supply: 48 V DC, driver not included
Dimensions: 900x23x40.8 mm
Accessory: surface-mounted 48 V DC magnetic track, 3 m

Applications and installation

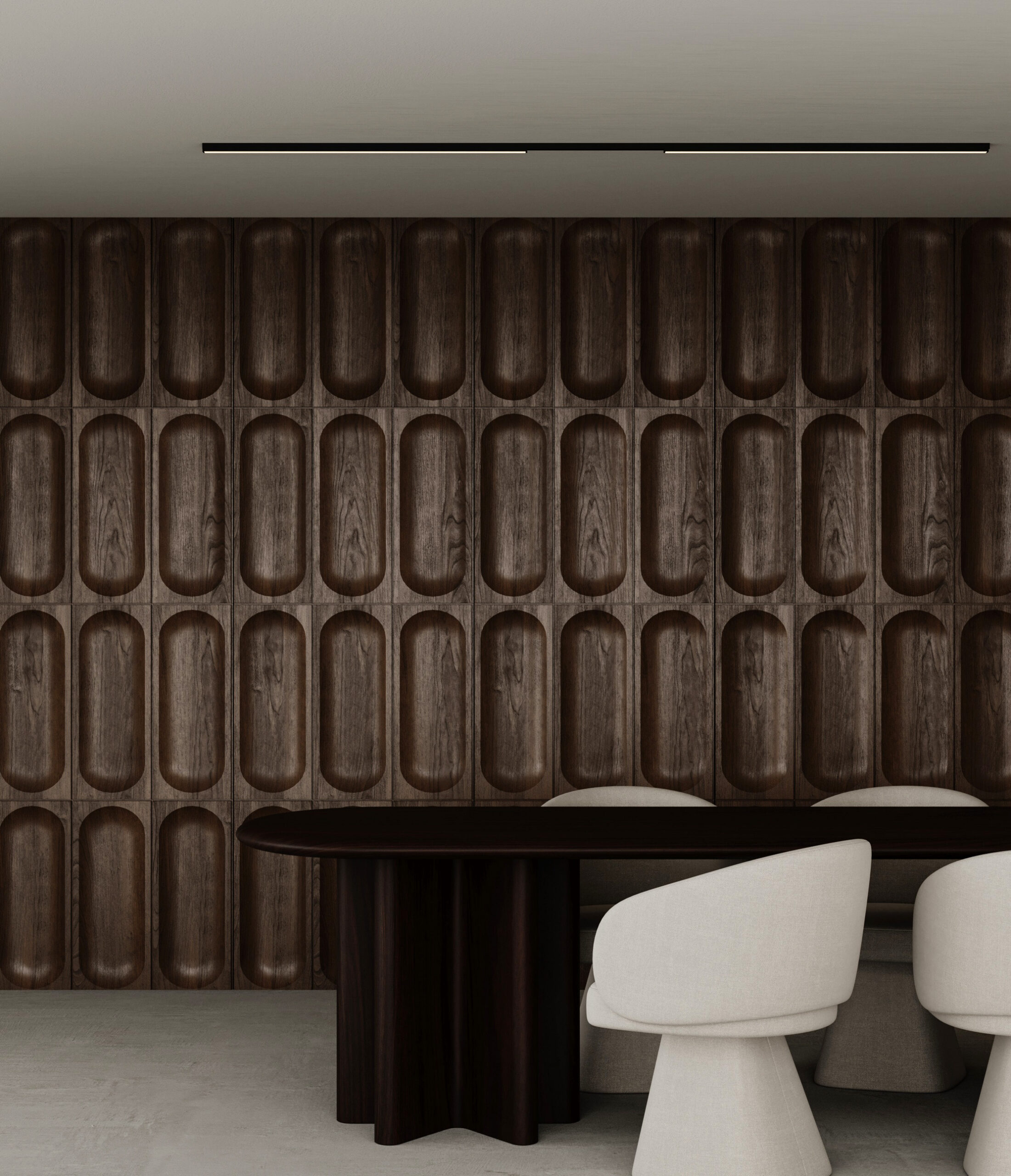

The Luminesse magnetic track LED luminaire carries the base light in living rooms, kitchens, offices, clinics and shops equipped with 48 V DC magnetic track. On the same run you can combine these modules for general light with accent heads from the Noglo family. The track fixes to the ceiling surface, and the 48 V DC power supply is sized for the total load of the installed modules. With IP20 protection the system belongs in dry, conditioned interiors. Designed and built in Europe.

Frequently asked questions

Are the track and the power supply included? No. The 3 m surface-mounted magnetic track is a separate accessory, and the 48 V DC supply is chosen for the number of fittings.

How many modules fit on a 3 m track? Three modules of 900 mm, with space left for accent heads, within the capacity of the power supply.

Which colour temperature should I choose? 3000 K for homes and relaxation areas, 4000 K for offices and retail spaces.
