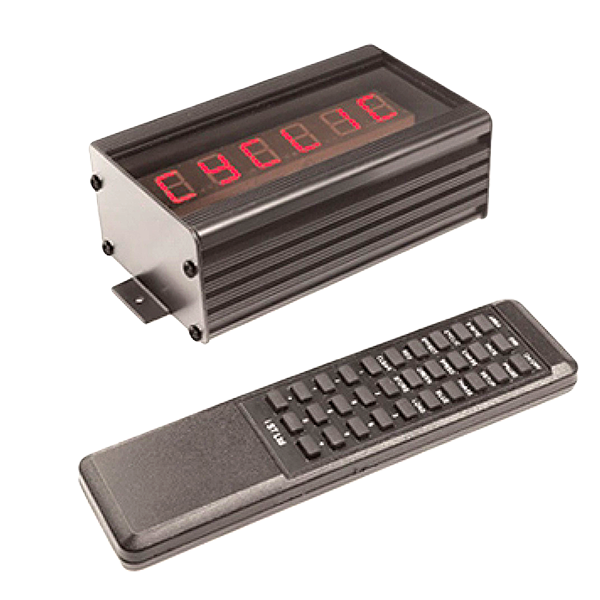

DMX RGB LED Controller with Remote 96 Addresses 4 Zones

DMX RGB LED Controller with Remote 96 Addresses 4 Zones

This DMX RGB LED controller is the command unit for small and mid-sized colour lighting installations. It suits installers and end users who want to start RGB scenes from a distance without a computer. The controller handles up to 96 DMX addresses split into 4 independent zones, which means as many as 32 RGB luminaires.

Benefits of the DMX RGB LED controller

• Operation without a PC: every function sits on the remote, so the end user changes scenes without support.
• 4 programmable zones: treat the facade, the garden, the driveway and the terrace separately, each with its own effect.
• 32 RGB luminaires: each luminaire takes a block of 3 consecutive addresses (red, green, blue), up to address 96.
• Effects included: static colours, colour cycles, chase effects, speed adjustment and a dynamic mode.
• Matches the RGB DMX range: it connects directly to luminaires with an integrated DMX driver.

Technical specifications

• Equipment type: DMX controller with remote for RGB applications
• Maximum number of DMX addresses: 96
• Individual zones: 4
• Maximum number of RGB luminaires: 32 (one luminaire = a block of 3 consecutive addresses: red, green, blue)
• Addressing: first luminaire at address 001, second at 004, then in steps of 3 up to 96
• Remote functions: static colours, cycling effects, chase effects, speed adjustment, dynamic mode

Applications and installation

Use the controller with DMX addressable RGB floodlights, for example the Galaxy, Saturn, Atlas, Niagara or Proton series. Connect the luminaires in logical order within each zone, so moving effects such as chases and dynamic scenes run correctly along the installation. Set the base address of each luminaire to 1, 4, 7 and so on, then assign the luminaires to the 4 zones. Keep the remote receiver within line of sight of the operating position. The unit is designed and manufactured in Europe.

Frequently asked questions

How many floodlights can I command? Up to 32 RGB luminaires, each using 3 DMX addresses. That is 96 addresses in total, spread across 4 zones.

How do I set the addresses? First luminaire at 001, second at 004, third at 007. Continue in steps of 3 up to a maximum of 96.

Which effects can I run? Static colours, colour cycles, chase effects with adjustable speed and one dynamic mode. You select them all from the remote.
