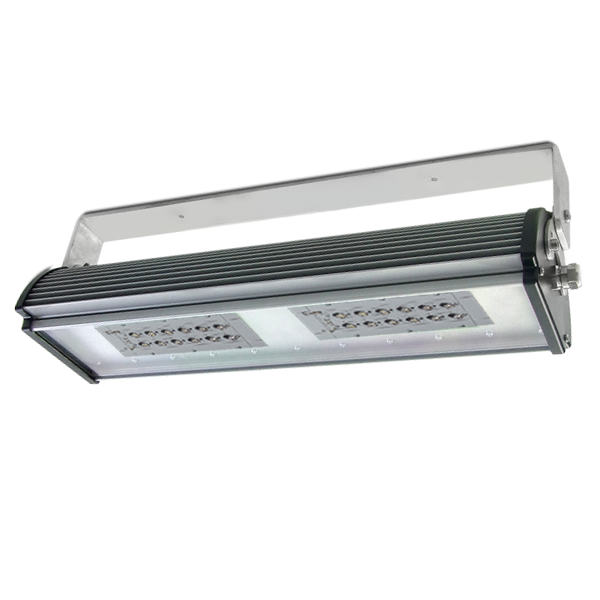

Apolo-Ex ATEX LED Floodlight for Industrial Halls 24 LEDs 60W

Apolo-Ex ATEX LED Floodlight for Industrial Halls 24 LEDs 60W

The Apolo-Ex ATEX LED floodlight lights warehouses and production halls where explosive gases or dusts occur, in group II zone 2 and group III zone 22. Twenty-four OSRAM LEDs of 2.5W give 110 lm/W. You choose the beam focus by mounting height, so light reaches the floor instead of the roof structure.

Benefits

• Focus matched to your hall: wide, medium or omnidirectional optics, selected for the height you mount at.
• 110 lm/W efficacy: 24 OSRAM LEDs of 2.5W draw only 60W in total.
• ATEX certified: general lighting duty in group II zone 2 and group III zone 22.
• IP66 aluminium housing with IK10 rating: holds up in dusty halls with moving plant and forklift traffic.
• Driver inside the housing: 90-230V, 50/60 Hz input removes external gear from the ceiling.
• F-Mark approval: fix the Apolo-Ex ATEX LED floodlight directly onto normally flammable flat surfaces.

Technical specifications

• Housing material: electrostatically painted aluminium
• Diffuser: clear plexiglass / UV-protected polycarbonate
• Housing colour: other colours available on request
• Zones of use: group II zone 2, group III zone 22
• Power supply: 230V AC standard; range 90-230V, 50/60 Hz
• Driver: included, inside the housing
• Number of LEDs: 24 (OSRAM, high power)
• Power per LED: 2.5W
• Total power: 60W
• Luminous efficacy: 110 lm/W
• LED colour: neutral white 4000K or cool white 5000K
• Beam focus: wide, medium or omnidirectional
• CRI: 80 (neutral and warm white), 70 (cool white)
• Ingress protection: IP66
• Impact resistance: IK10
• Electrical insulation class: I
• Operating temperature: -20 degrees C to +40 degrees C
• Mounting: on a flat surface
• Dimensions: 520 x 135 x 150 mm
• Weight: 3.8 kg
• Compliance: CE, ATEX, F-Mark

Applications and installation

Use this floodlight indoors in industrial halls, warehouses and production areas where explosive gases or dusts appear in zone 2 and zone 22. Fix it to a flat surface, on the ceiling or on the hall structure. Pick the wide beam for low ceilings and the medium beam for tall bays. The IP66 rating keeps fine airborne dust out of the optical chamber, which matters in cement, grain and mineral handling plants across the Gulf. Note the rated ambient limit of +40 degrees C when you plan the installation. The product is designed and manufactured in Europe.

Frequently asked questions

Which beam focus should I order? Wide for low mounting heights, medium for tall halls, omnidirectional for even light all around.

Is it approved for zone 1? No. Certification covers group II zone 2 and group III zone 22 only.

How much power does it draw? 60W in total, from 24 LEDs of 2.5W, at an efficacy of 110 lm/W.
